Izi Pro S
Desk frame, sit/standIzi Pro S is an adjustable, motorized, sit-stand desk frame for flexible and sustainable workplace solutions. Izi Pro S is minimalist in design, with slim components, which means less material used and less weight. The frame is available in a version with two legs for rectangular tops, or with three legs, for combinations. The frame is adjustable in length (two-legged frame) as well as length and depth (three-legged frame), which enables a large selection of table top dimensions.
Model
Desk frame, sit/stand
Details

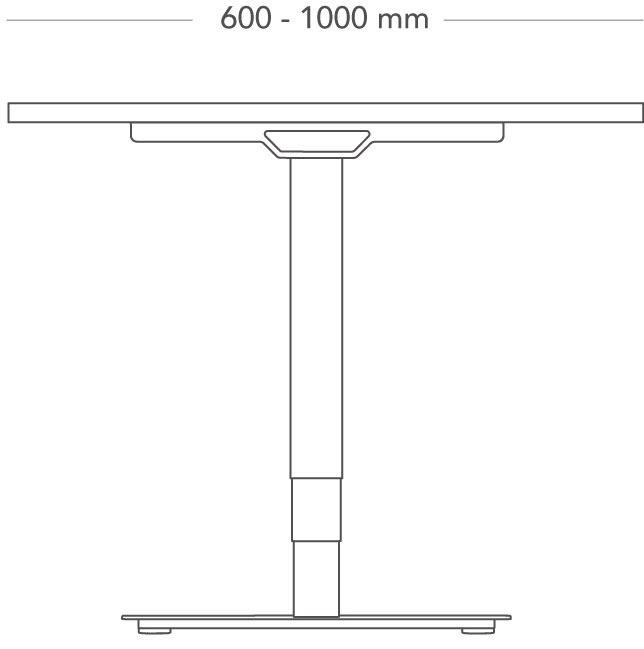

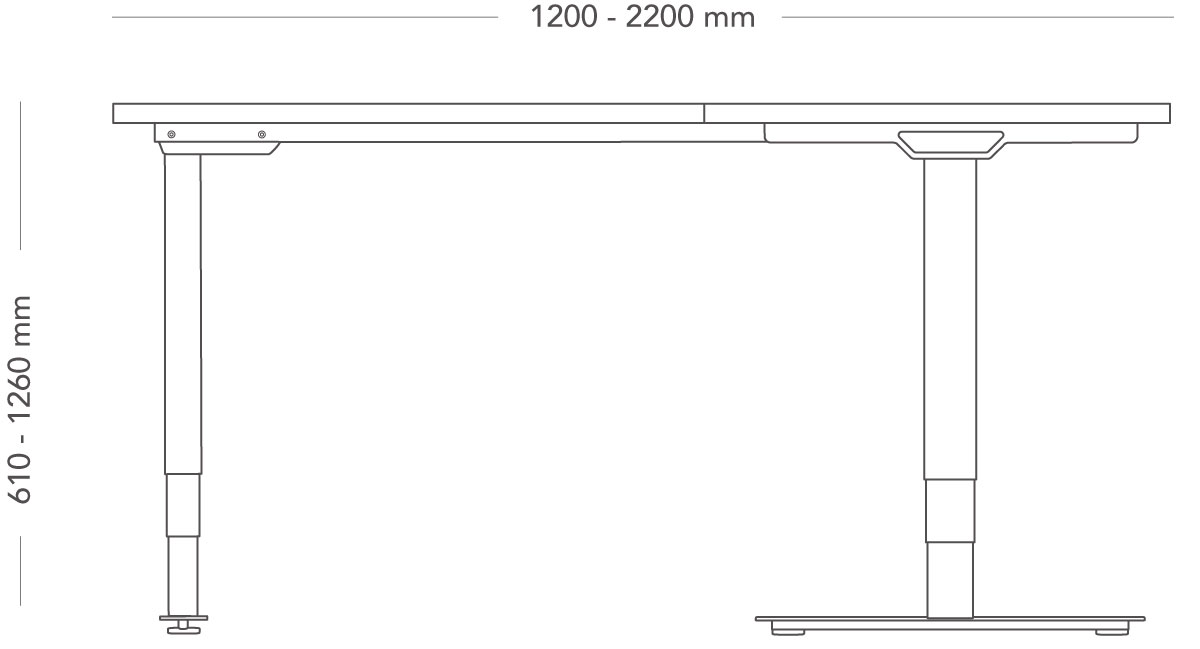

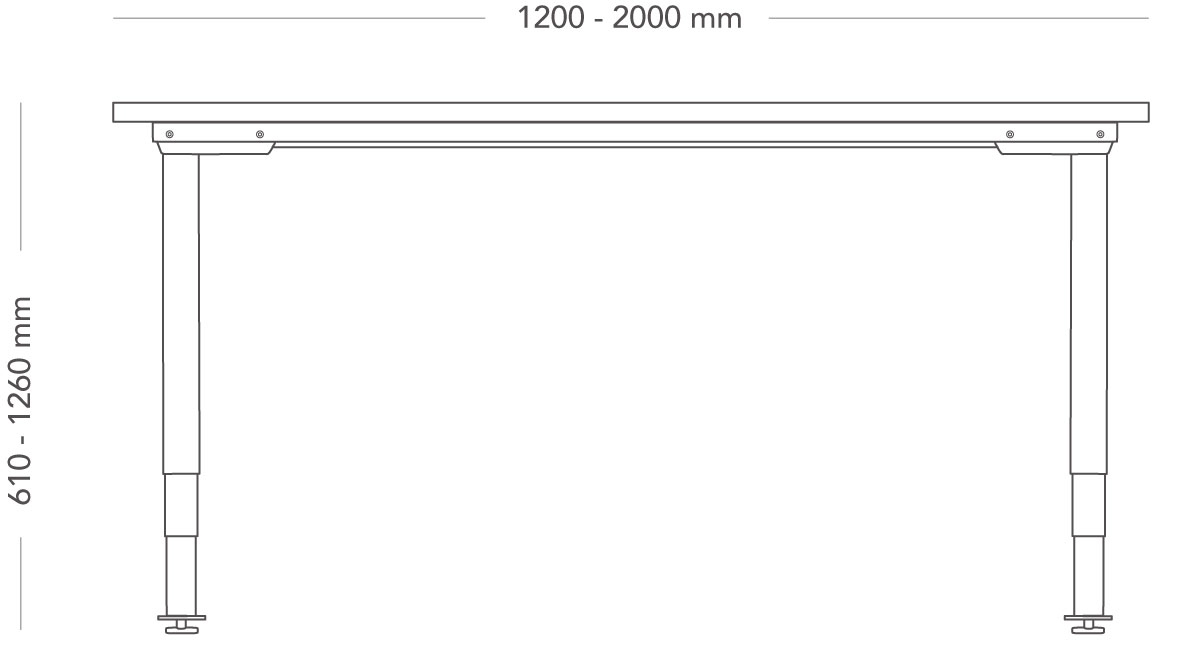

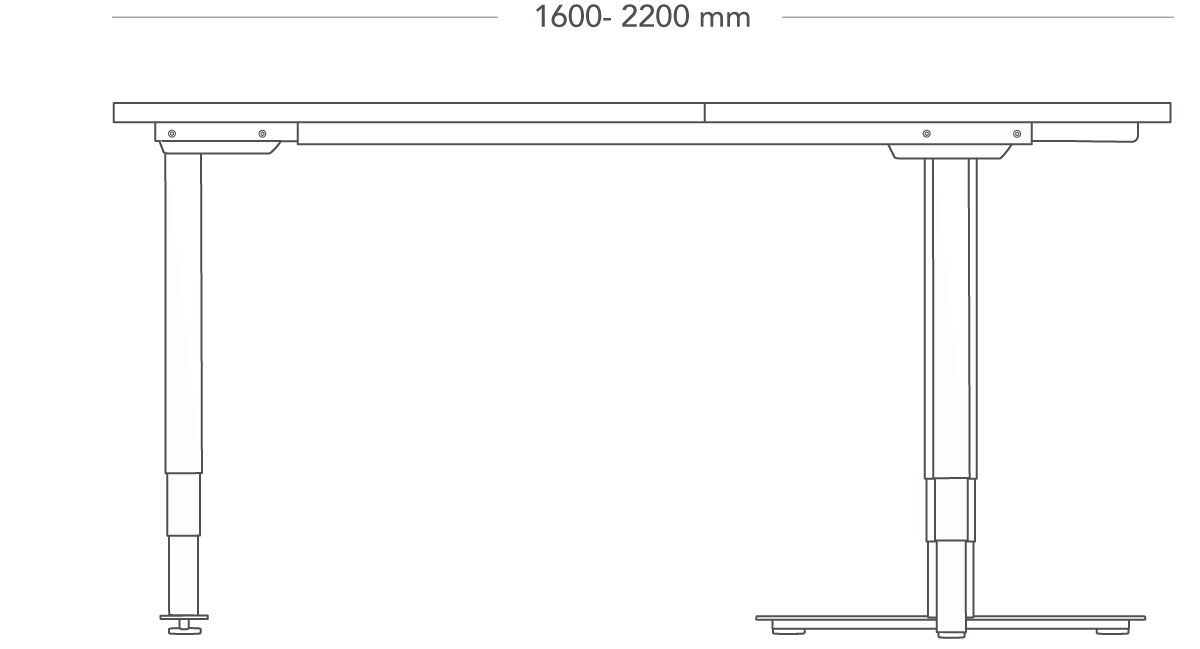

- Speed: 30 mm / s - Two-legged frame has two 600 mm T-feet and two 575 mm brackets. Fits table tops 1200-2000 mm in length and 600-1000 mm in depth. - Three-legged frame for table combinations has two 600 mm T-feet, one support leg without foot and two 575 mm brackets. Fits table top combinations length 1600-2200 mm, width 1200-2200 mm, (alt. length 1200-2200 mm, width 1600-2200 mm)
Construction
Powder-coated, motorized metal frame with rectangular legs and T-foot, with plastic adjustable feet. The wide part of the leg is turned upwards. The frame has steplessly adjustable steel-pipe rims. Anti-collision protection is included. Table top with beveled edge has a 22 mm MDF core. Table top with a straight edge has a 22 mm wood-fiber core. Surface coating of the table top is 0.2-2 mm depending on material choice. Maximum load of the frame is stated as distributed weight, including table top. Height is stated including table top (22 mm).
Guarantee
5 years
Tested
EN 527-1-2, EN 1730
Sit/stand, motor operated
| Height | 610-1260 mm |
| Length | 1200-2000 mm |
| Width | 700-800 mm |
Sit/stand, motor operated
| Height | 610-1260 mm |
| Length | 1410-1950 mm |
| Width | 1325-1870 mm |
Materials
Leg frame
-
MFC
-
Table top
-
Wood
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Accessories for table screens
Cable management, monitor holders etc -
Table screen
Table screens for screening and improved acoustics. -
Power and cable management
Accessories for power, IT and cable management. -
Standing mat
Ergonomic workstation mat, core in PU, outer layer in PU-rubber or felt.
| Product Overview | ||
|---|---|---|
| EFG worktables coordinates | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| U-tray assembly instruction | Share file Download file | |
| IZI Pro S assembly instruction -2 legs | Share file Download file | |
| IZI Pro S assembly instruction -3 legs | Share file Download file | |
| Izi Pro S user manual | Share file Download file | |
| Product sheet | ||
|---|---|---|
| Izi Pro S - Desk, sit-stand | Share file Download file | |
| U-Tray | Share file Download file | |
| Models | ||
|---|---|---|
| Izi Pro S 2dwg | zip | Share file Download file |
| Izi Pro S 3ds | zip | Share file Download file |
| Certificates and licenses | ||
|---|---|---|
| Möbelfakta EFG IZI Pro S (EN) | Share file Download file | |
| Guide for accessory cutouts - workstations | ||
|---|---|---|
| EFG Table tops, co-ordinates | Share file Download file | |
