Bench
Desk sit/stand, 2 workstationsBench is an electrically height-adjustable desk system in modules of two workstations. The desks form a system solution with associated linking beams and cable ducts that can be connected to adjacent desks. The system makes office planning faster and more manageable, while also supporting easy scaling and expansion over time. The power supply to all workstations is also simplified, as one desk can be connected to adjacent clusters. The airy and clean design of the frames creates a consistent aesthetic expression in open and dynamic work environments and contributes to a structured and easy-to-maintain workspace.
Model
Desk sit/stand, 2 workstations
Details
Motorised height-adjustable desk, one motor in each leg. The frames are raised and lowered continuously and independently of each other. Predefined desk sizes: 1200 × 800 mm, 1400 × 800 mm and 1600 × 800 mm. Square legs with the thicker section of the leg facing downwards. Straight leg ends without T-foot, with adjustable feet for levelling on the floor. Telescopic cable duct with lid for power cables, as well as cable trays for electrical accessories are included. Stroke length 650 mm. 160 kg lifting capacity (80 kg per table top), evenly distributed weight. Bench is available in three versions: without table screen, with one shared/fixed table screen, or with two individual screens. For Bench without screens, a screen solution with one shared screen or two individual screens can be ordered separately. The shared screen has concealed fittings. Bench with one shared screen can be reconfigured into two individual screens and vice versa. Cable duct for linking multiple workstations, concealing cable connections between desks, is available as an accessory. All versions of Bench can be converted into two individual desks if needed.
Construction
Motorised metal frame in powder-coated steel with rectangular legs and a straight metal foot, with plastic adjustable feet. Continuously adjustable frame rails in steel profile, adjustable within the range 1200–1600 mm. Telescopic cable duct with lid, and cable duct for linking in laser-cut, powder-coated steel, same colour as the legs. Material in cable tray: 0.7 mm sheet steel; brackets in 2 mm sheet steel.
Guarantee
5 years
Tested
EN 527-1-2, EN 1730

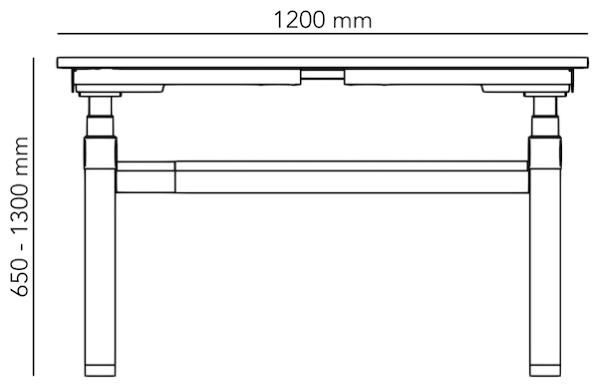

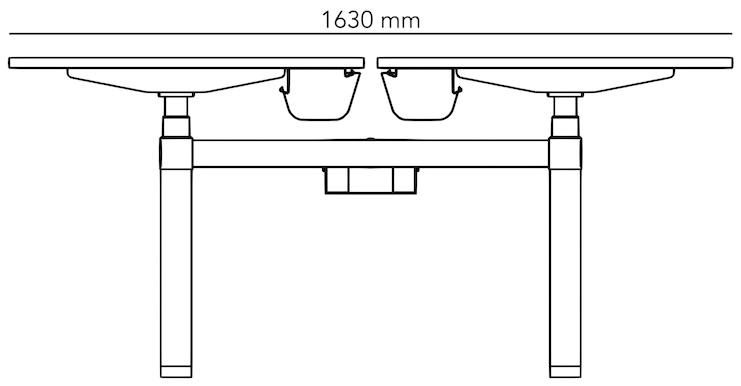

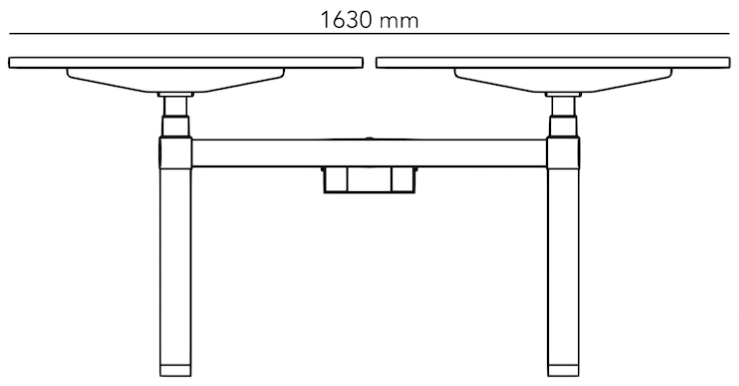

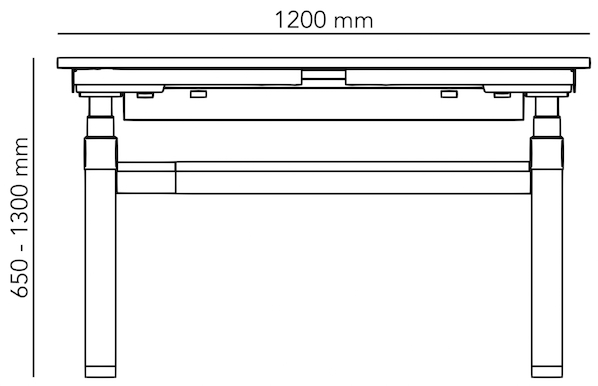

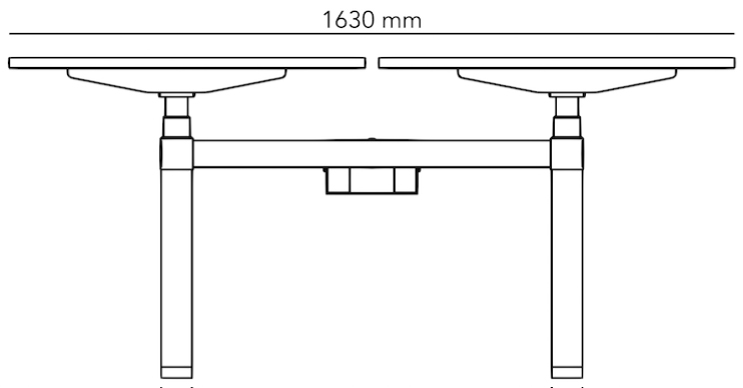

Sit/stand, motor-operated
| Height | 650-1300 mm |
| Length | 1200 mm |
| Width | 1630 mm |
| Weight | 111.4 kg |
| Stroke | 650 mm |

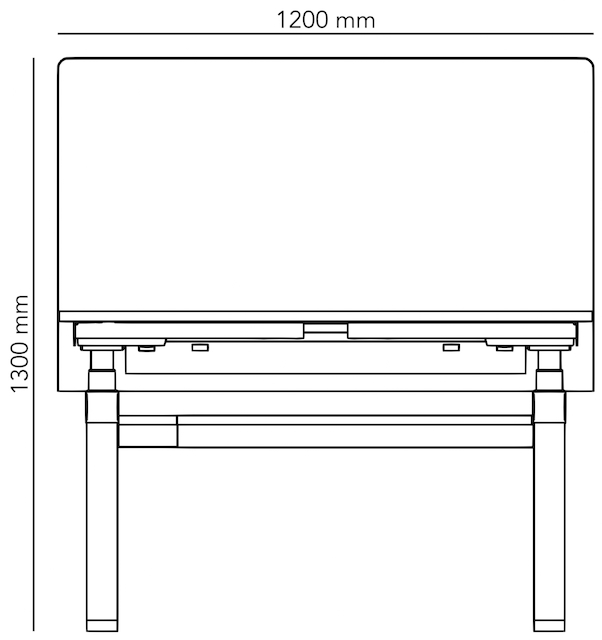

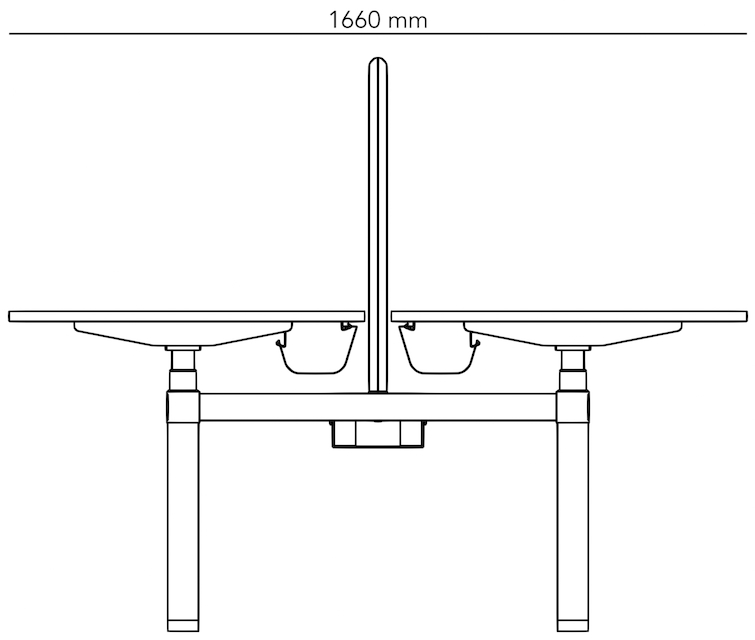

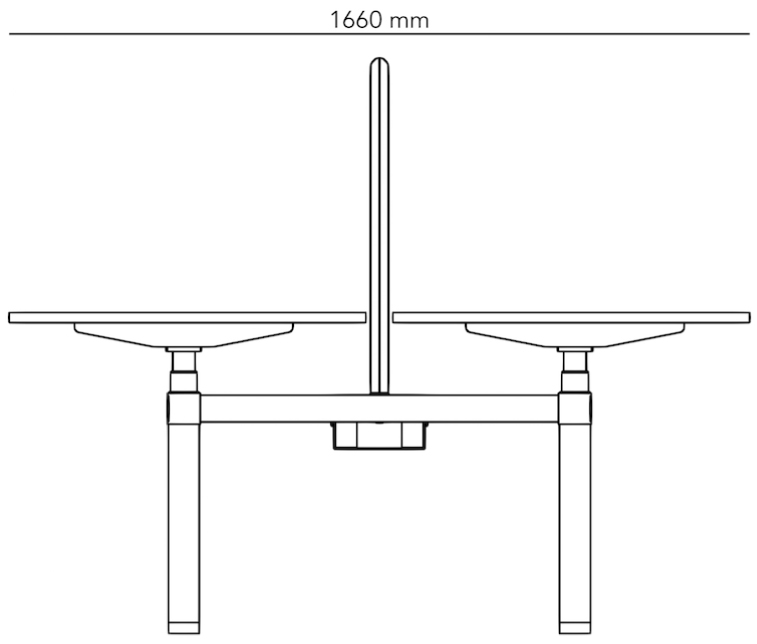

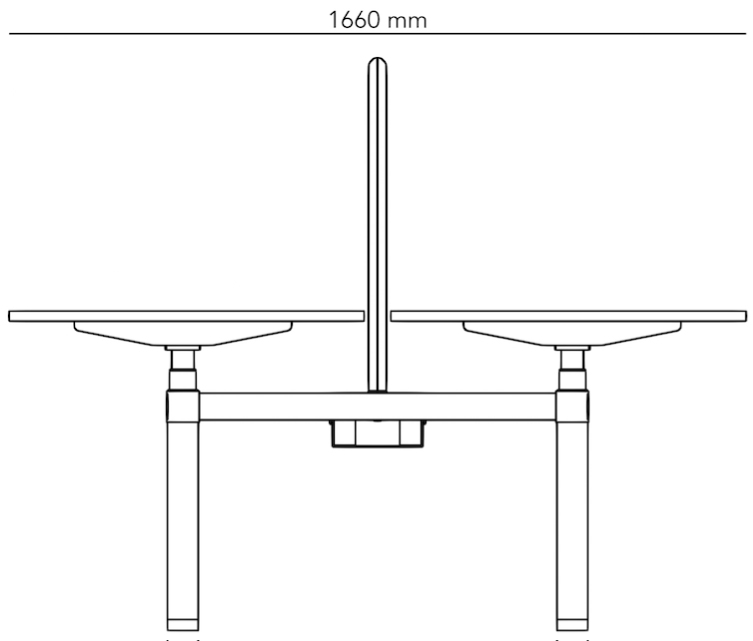

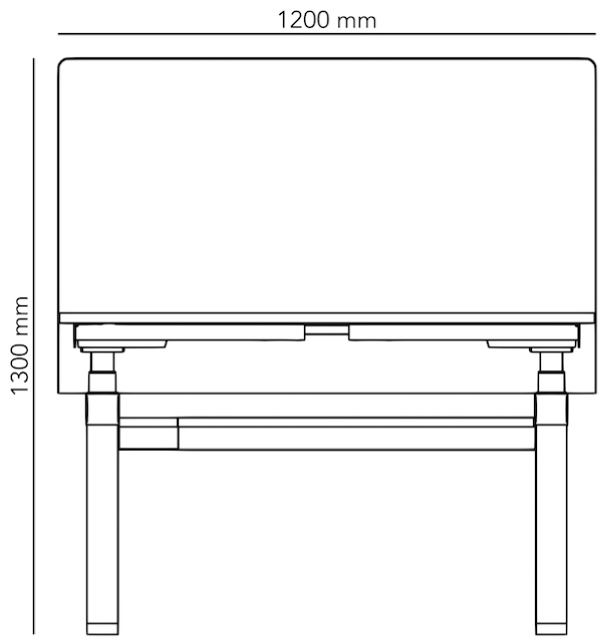

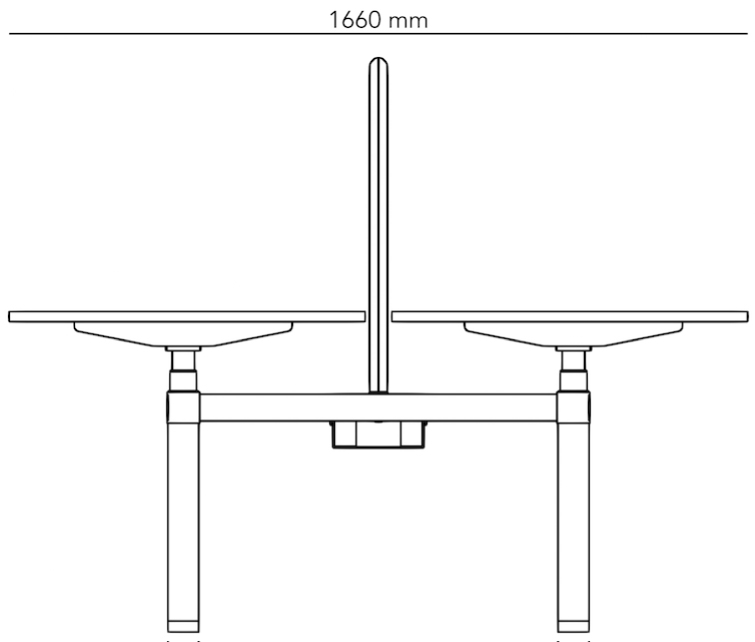

Sit/stand, motor-operated, 1 shared table screen
| Height | 1300 mm |
| Length | 1200 mm |
| Width | 1660 mm |
| Weight | 123.2 kg |
| Stroke | 650 mm |

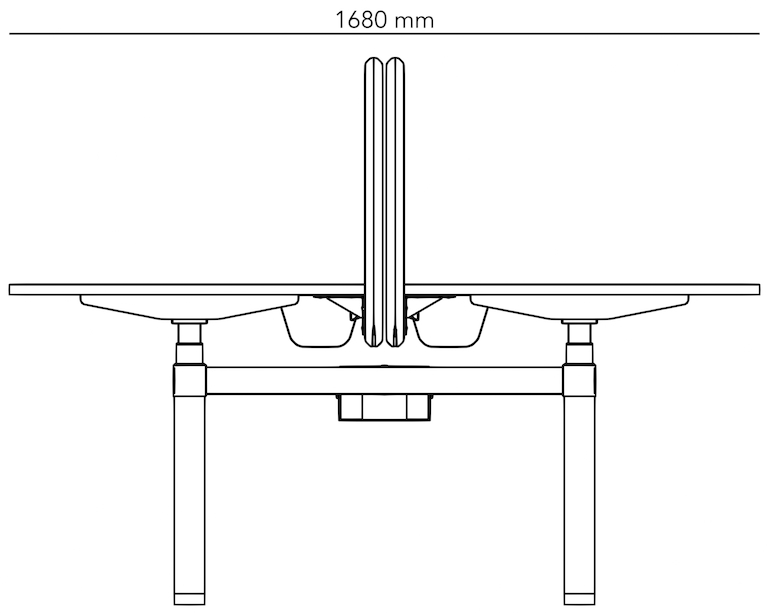

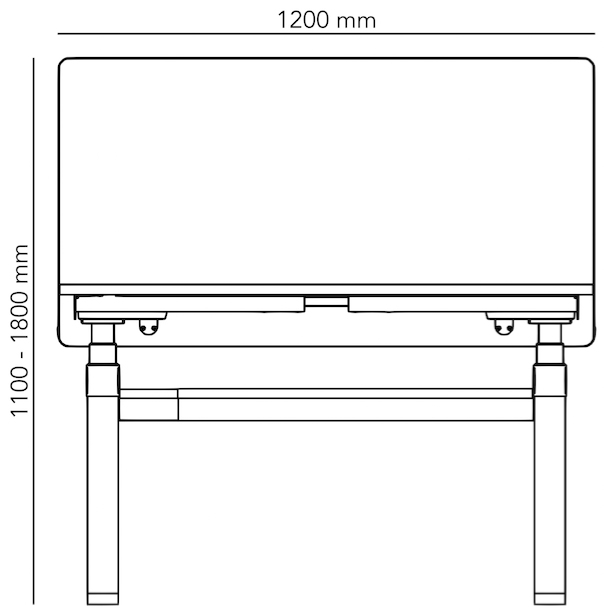

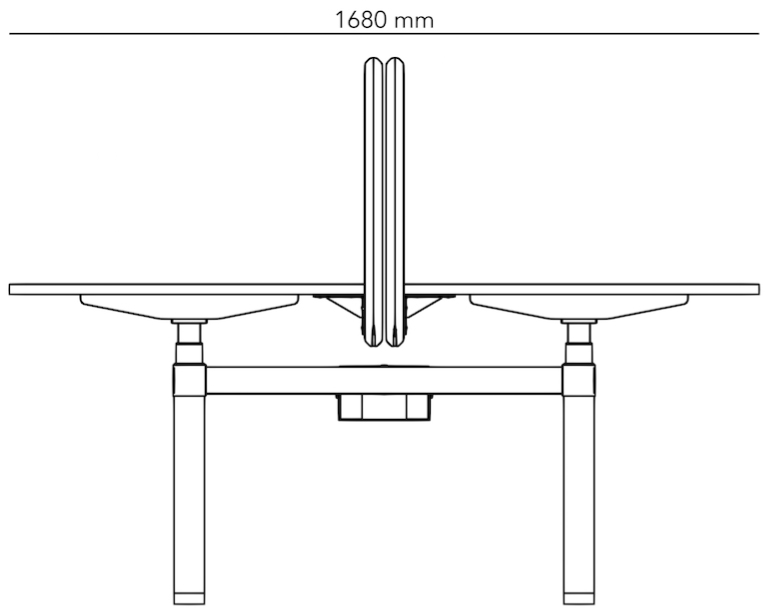

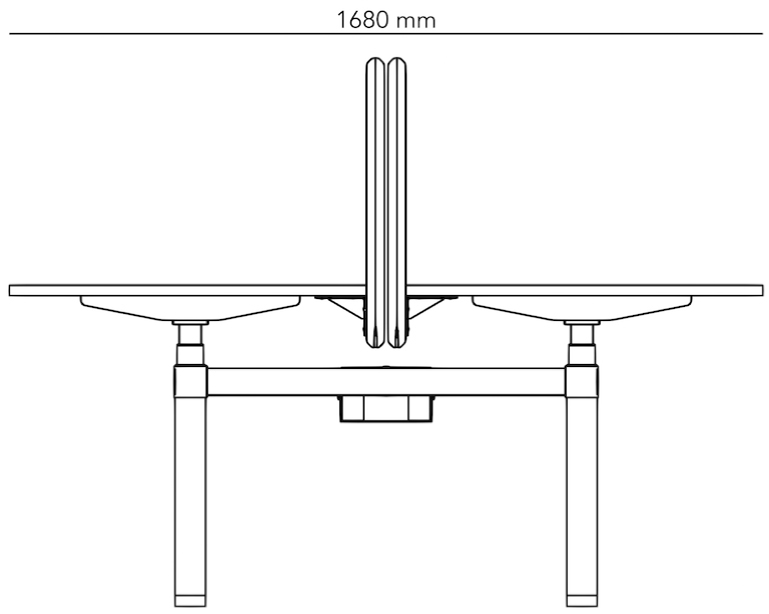

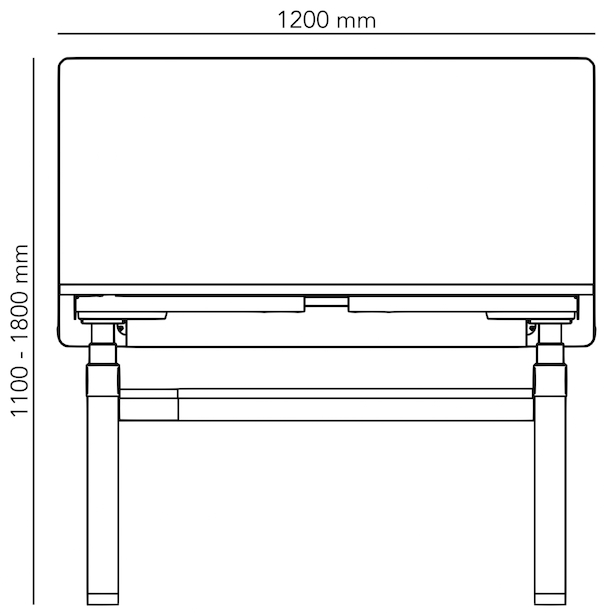

Sit/stand, motor-operated 2 individual table screens
| Height | 1100-1800 mm |
| Length | 1200 mm |
| Width | 1680 mm |
| Weight | 135.0 kg |
| Stroke | 650 mm |

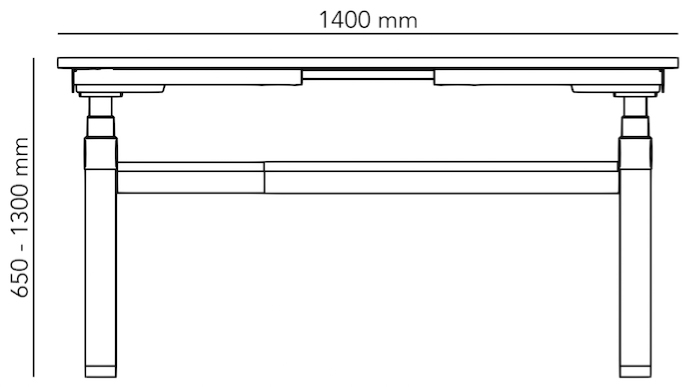

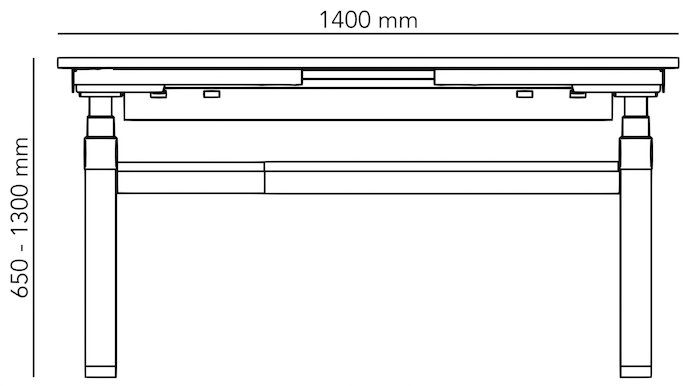

Sit/stand, motor-operated
| Height | 650-1300 mm |
| Length | 1400 mm |
| Width | 1630 mm |
| Weight | 116.8 kg |
| Stroke | 650 mm |

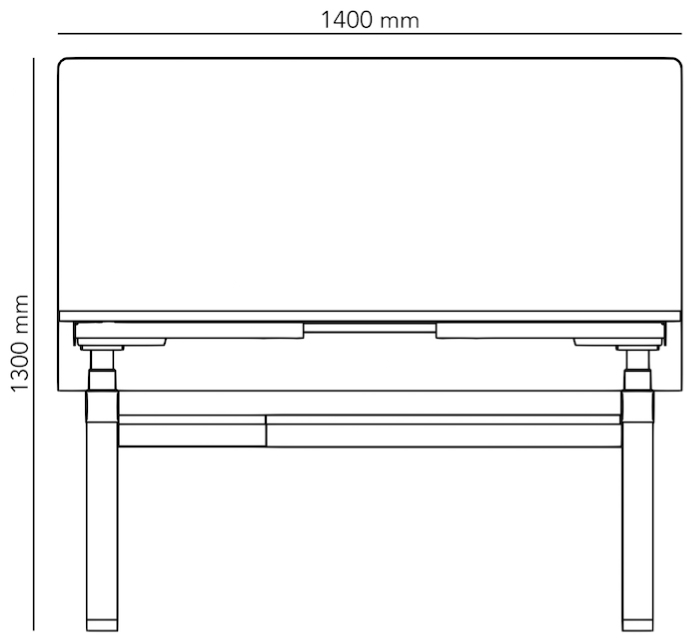

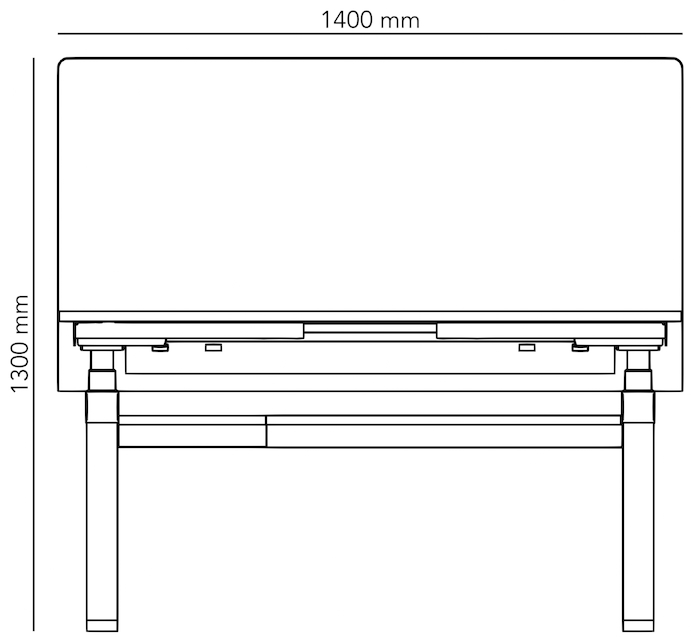

Sit/stand, motor-operated, 1 shared table screen
| Height | 1300 mm |
| Length | 1400 mm |
| Width | 1660 mm |
| Weight | 132.0 kg |
| Stroke | 650 mm |

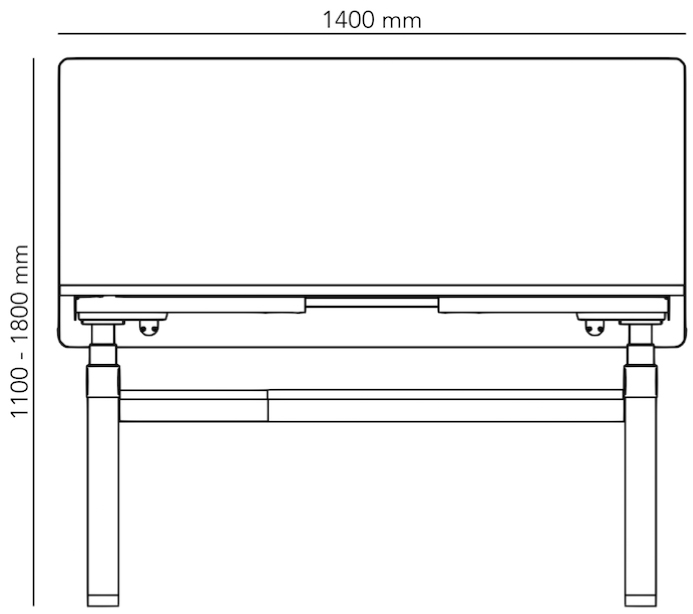

Sit/stand, motor-operated, 2 individual table screens
| Height | 1100-1800 mm |
| Length | 1400 mm |
| Width | 1680 mm |
| Weight | 116.8 kg |
| Stroke | 650 mm |

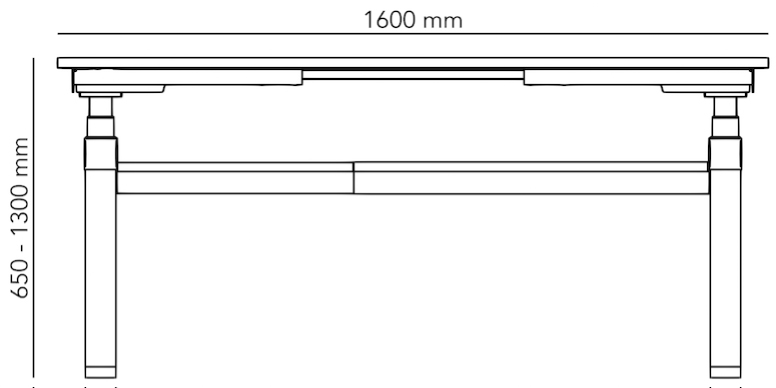

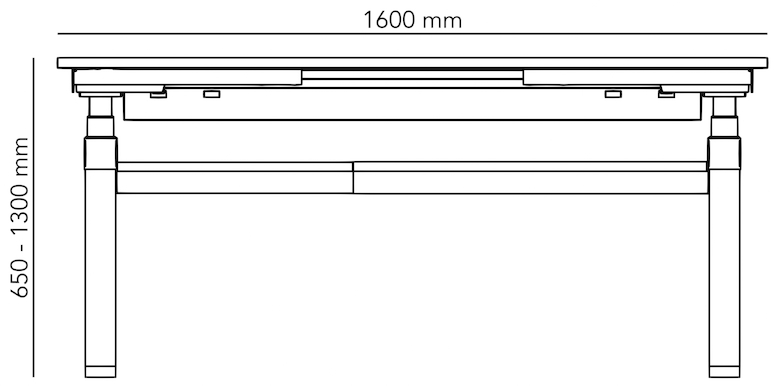

Sit/stand, motor-operated
| Height | 650-1300 mm |
| Length | 1600 mm |
| Width | 1630 mm |
| Weight | 122.0 kg |
| Stroke | 650 mm |

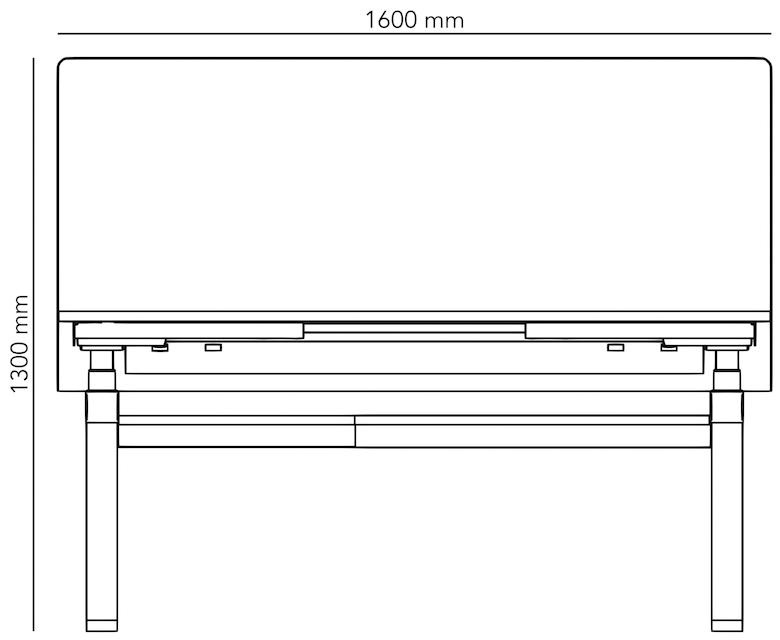

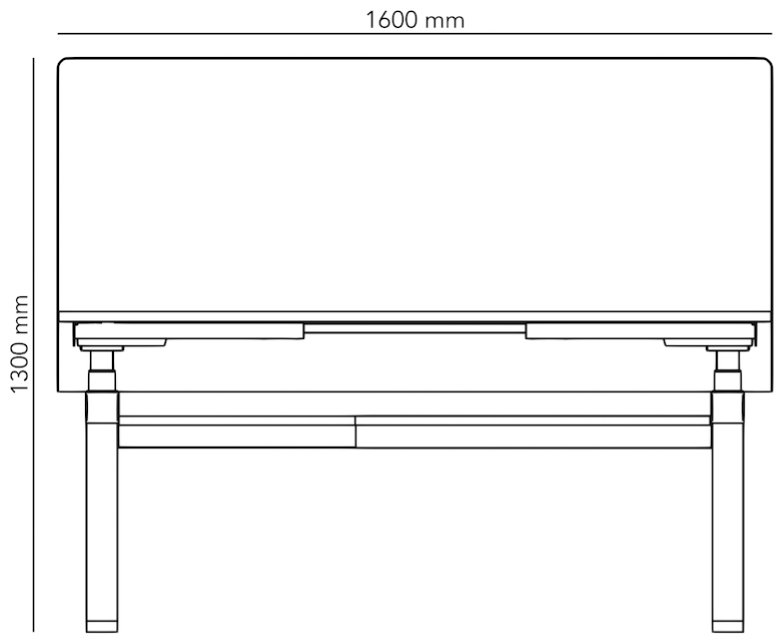

Sit/stand, motor-operated, 1 shared table screen
| Height | 1300 mm |
| Length | 1600 mm |
| Width | 1660 mm |
| Weight | 139.7 kg |

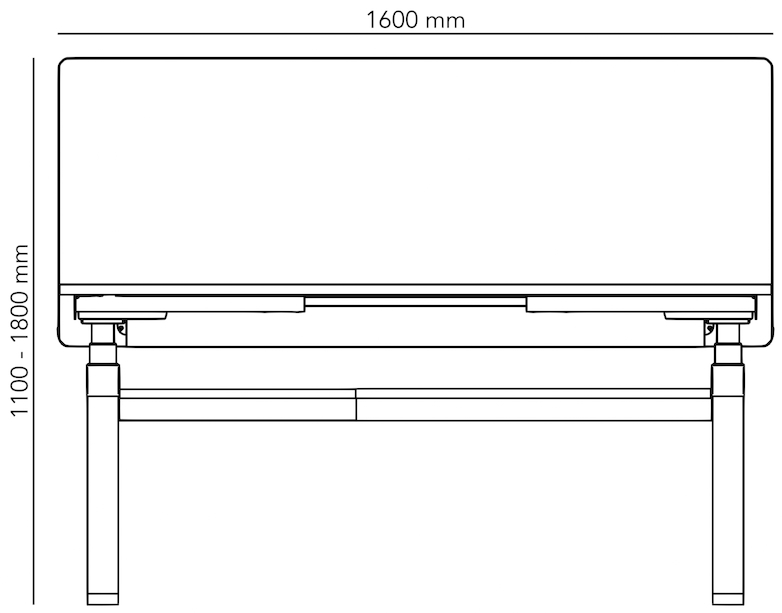

Sit/stand, motor-operated, 2 individual table screens
| Height | 1100-1800 mm |
| Length | 1600 mm |
| Width | 1680 mm |
| Weight | 116.8 kg |
| Stroke | 650 mm |
Variant
Variant
-
Two workstations
Desk, module with two workstations. -
Two workstations, shared screen
Desk, module with two workstations, one shared (fixed) screen. -
Two workstations, individual table screens
Desk, module with two workstations, two individual screens.
Materials
Leg frame
-
Metal
-
Screen
-
Fabric
-
Table top
-
Wood
-
-
MFC
-
-
HPL
-
-
Linoleum
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Table screen
Table screens for screening and improved acoustics. -
Power and cable management
Accessories for power, IT and cable management. -
Linking cable duct
Cable duct for connecting and linking Bench workstations. -
Standing mat
Ergonomic workstation mat, core in PU, outer layer in PU-rubber or felt.
