Izi Pro
Desk frame sit/standSit- stand table frame for flexible workplace solutions. Adjustable length, different leg options available. EFG Izi Pro is a large flexible family of tables all with a clean design. The frame is both height adjustable and the telescopic beams facilitate various top sizes, a practical and economical solution if changes call for a larger or smaller table. The range can be configured with numerous different table tops, sizes and finishes to suit your specific needs. Sliding table tops are ideal for hiding cables and by adding Smart accessories functionality meets design effortlessly.
Model
Desk frame sit/stand
Details
Möbelfakta labelling applies to tables with a length of 1200–2200 mm and a width of 700–1200 mm.
Construction
Motorized frame made of powder-coated steel with rectangular legs and a T-foot, as well as adjustable plastic leveling feet. Steplessly adjustable beams in the range of 1000-1950 mm. Anti-collision protection included. The tabletop has a straight edge and a wood fiber core. Surface coating ranges from 0.2 to 2 mm depending on the chosen material. Maximum load capacity is specified including the tabletop, with evenly distributed weight. Height measurements include a 22 mm tabletop.
Guarantee
5 years
Tested
EN 527-1-2, EN 1730, ISO 21016, CE- European directive 2006/42/EG

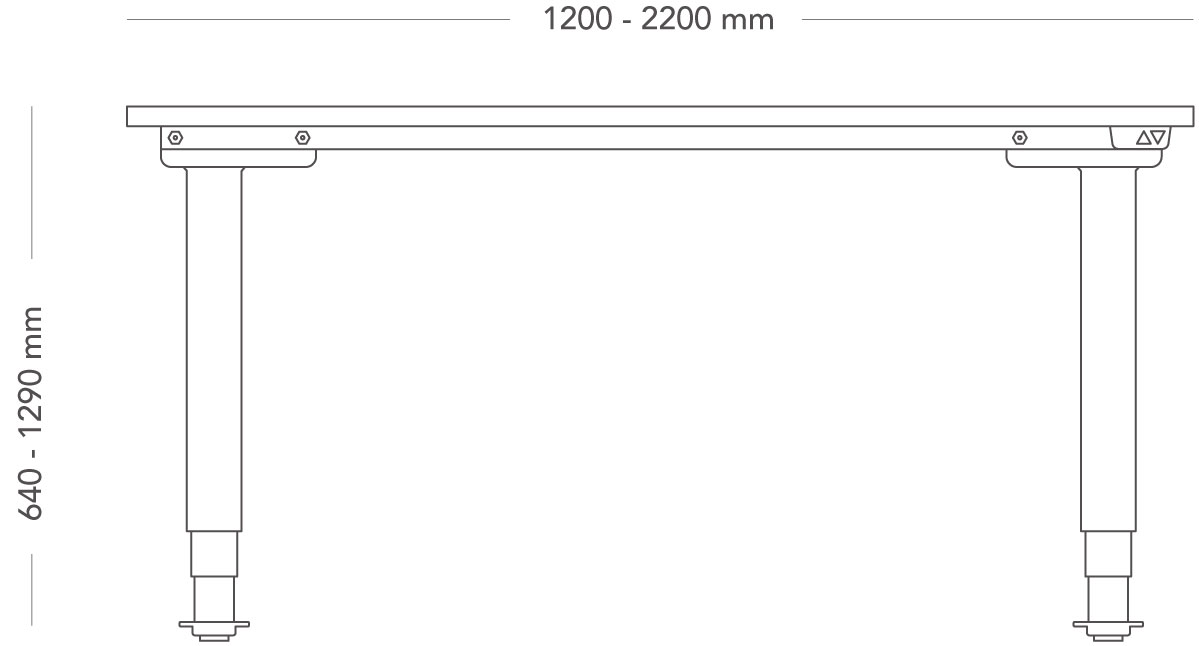

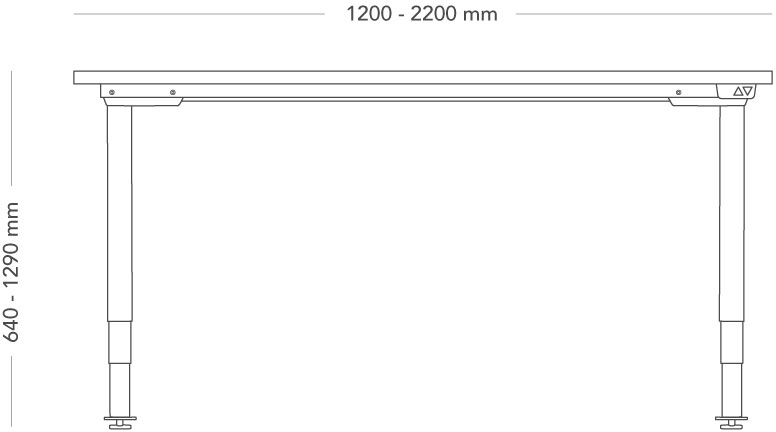

Frame sit/stand, motor-operated, 2 legs
| Height | 640-1290 mm |
| Length | 1200-2200 mm |

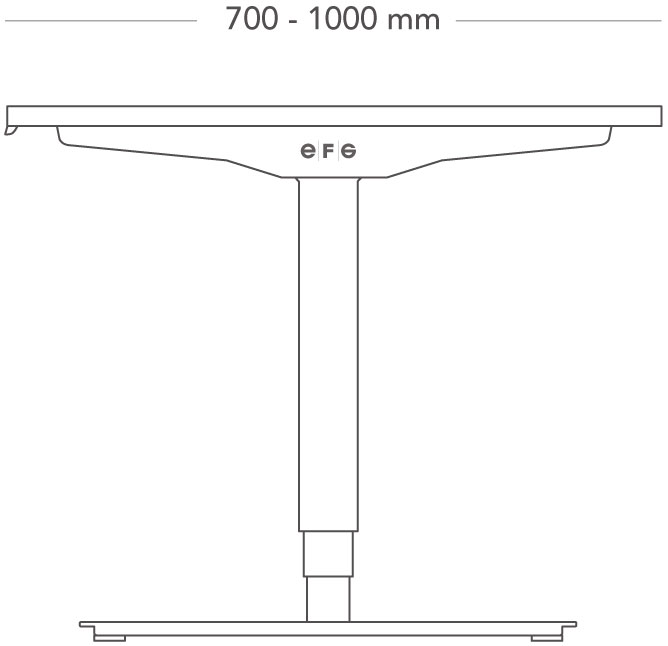

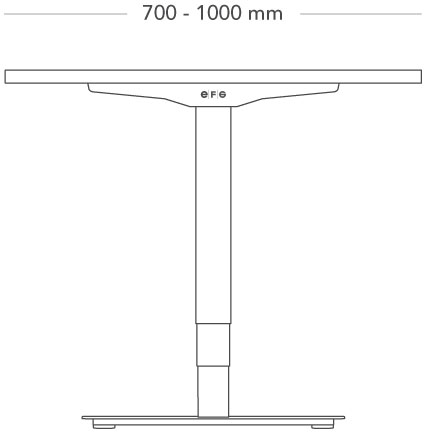

| Depth | 700-1000 mm |
| Weight | 30 - 50 kg |

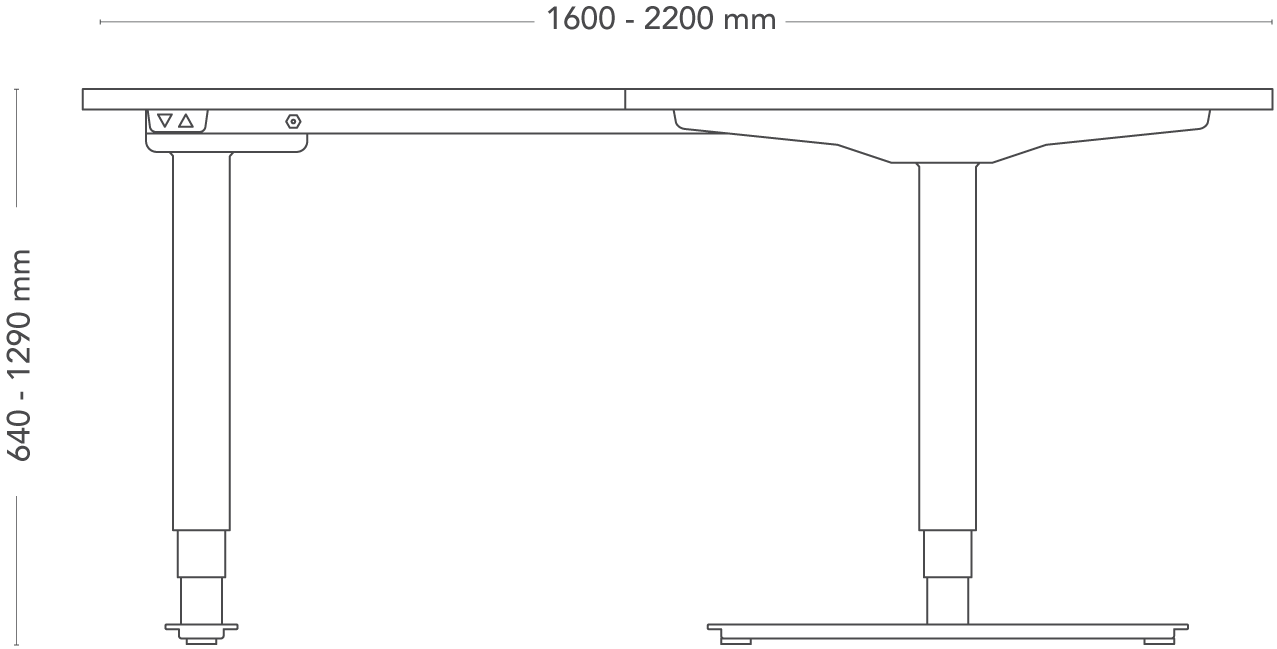

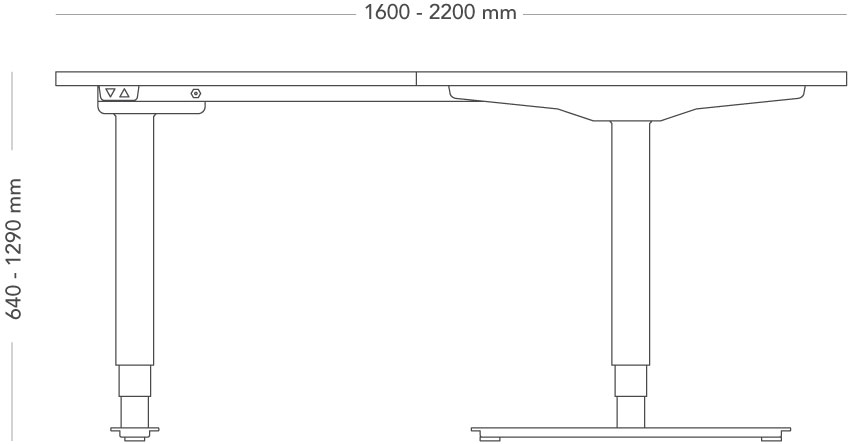

Frame sit/stand, motor-operated, 3 legs
| Height | 640-1290 mm |
| Length | 1600-2200 mm |

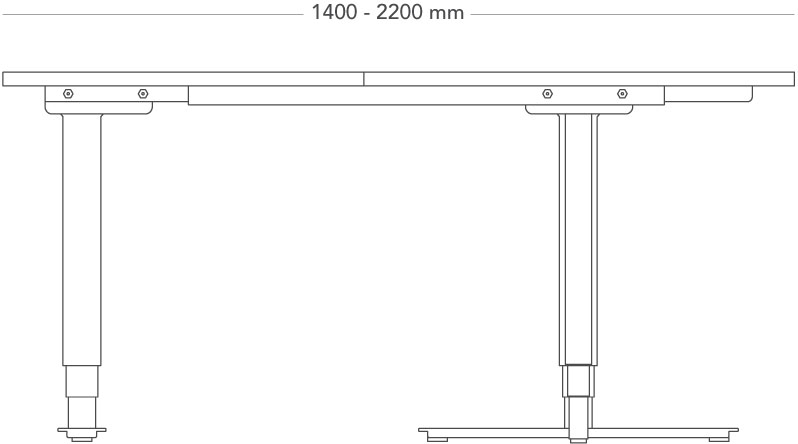

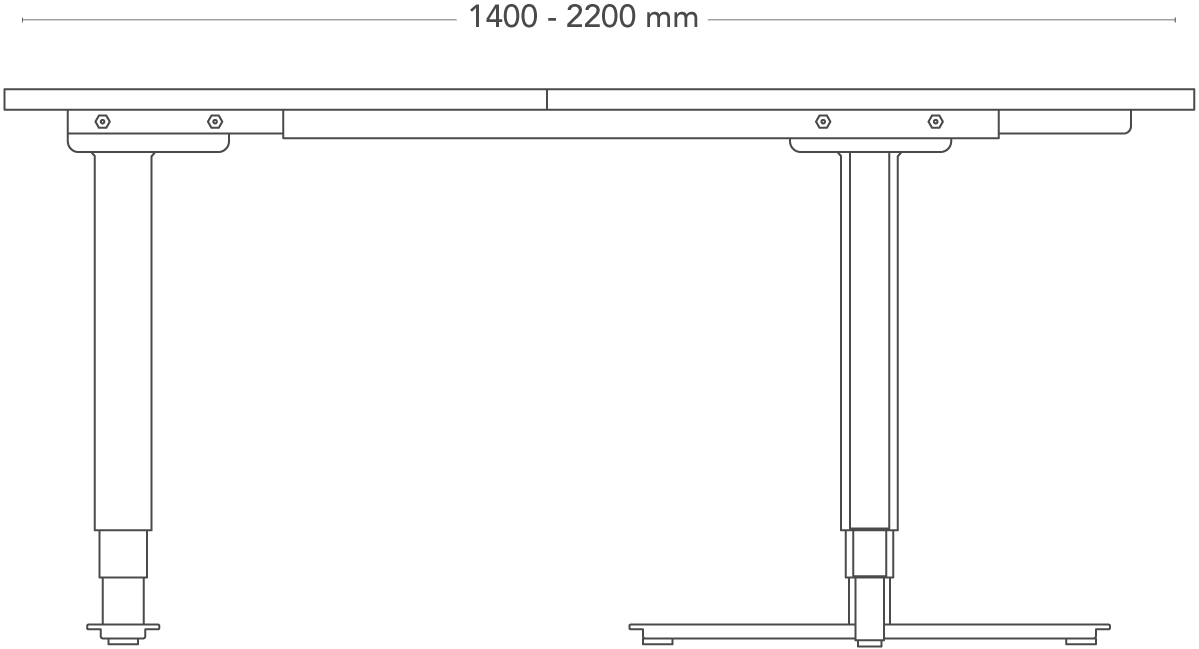

| Width | 1400-2200 mm |
Variant
Frame types
-
For rectangular tops
Two legs, 2x700 mm feet, for rectangular tops. -
For corner tops
Two legs, 2x700 mm feet, and one long rim, for corner tops. -
For desk combinations
With three legs, 2x700 mm feet, 1x500 mm foot, for desk combinations.
Materials
Leg frame
-
Metal
-
Table top
-
Wood
-
-
MFC
-
-
HPL
-
-
Linoleum
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Power and cable management
Accessories for power, IT and cable management. -
Accessories for table screens
Cable management, monitor holders etc -
Table screen
Table screens for screening and improved acoustics. -
Standing mat
Ergonomic workstation mat, core in PU, outer layer in PU-rubber or felt.
| Brochures and Catalogues | ||
|---|---|---|
| EFG tables assortment - meeting tables and desks | Share file Download file | |
| Izi Pro broschure | Share file Download file | |
| User manual | ||
|---|---|---|
| Reset manual | Share file Download file | |
| Troubleshooting manual | Share file Download file | |
| Izi Pro - user manual | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| Izi Pro assembly instruction | Share file Download file | |
| U-tray assembly instruction | Share file Download file | |
| Models | ||
|---|---|---|
| Table tops 3D Studio .3ds | zip | Share file Download file |
| Table tops AutoCad 2D .dwg | zip | Share file Download file |
| Table tops AutoCad 3D .dwg | zip | Share file Download file |
| Izi Pro - AutoCad 2D/3D .dwg | zip | Share file Download file |
| Izi Pro - 3D Studio .3ds | zip | Share file Download file |
| Izi Pro - Filmbox .fbx | zip | Share file Download file |
| Certificates and licenses | ||
|---|---|---|
| Izi Pro - Environmental declaration | Share file Download file | |
| Izi Pro - Möbelfakta Certificate | Share file Download file | |
| Product sheet | ||
|---|---|---|
| U-Tray power- & cable management | Share file Download file | |
| Izi Pro - desk frame, sit stand | Share file Download file | |
| Product Overview | ||
|---|---|---|
| Cutouts for accessories in table tops - co-ordinates | Share file Download file | |
