Izi Effect
Desk frame, stationaryIzi Effect is a series of stationary workstations and conference tables whith manual height adjustment. The table has metal frame with rectangular legs and T-foot.
Model
Desk frame, stationary
Construction
Manually adjustable frame with rectangular legs in steel profile and a T-foot in sheet steel, with adjustable feet in plastic and metal. Height adjustment 610–900 mm. Continuously adjustable frame rails in powder-coated sheet steel, adjustable 1050–1930 mm, suitable for table tops 1200–2000 mm in length.
Guarantee
5 years
Tested
EN 15372:2016, EN 1730:2012.

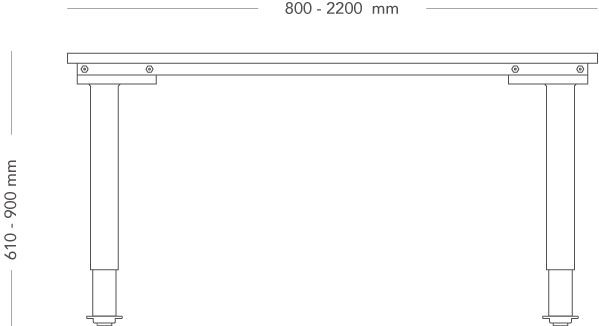

Desk frame, manual height adjustment
| Height | 610-900 mm |
| Length | 800 - 2200 mm |

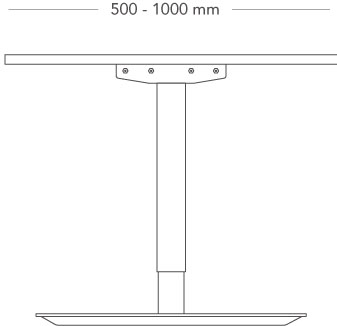

| Width | 500 - 1000 mm |

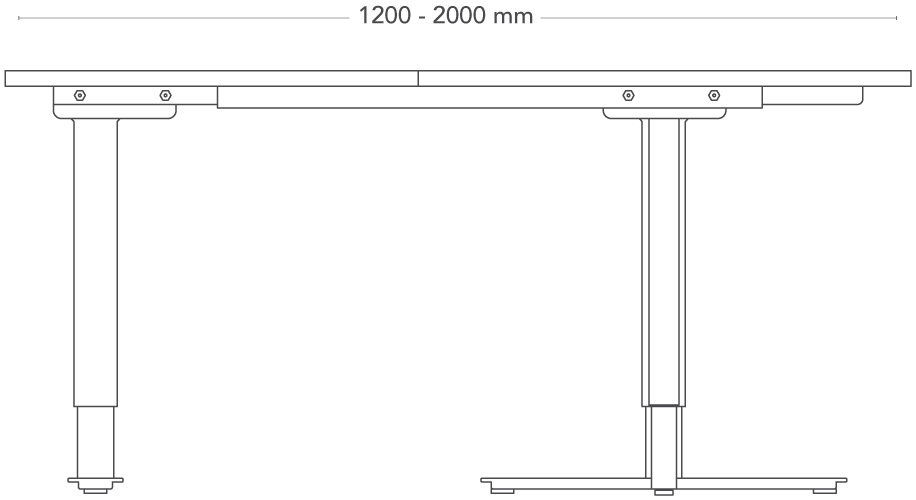

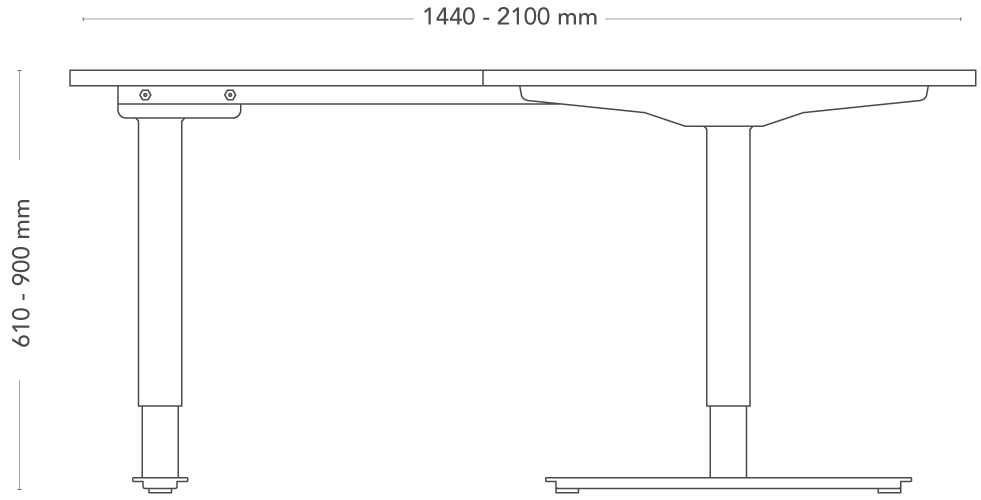

Desk frame, manual height adjustment, 3 legs
| Height | 610-900 mm |
| Length | 1440 - 2100 mm |
| Width | 1200 - 2000 mm |
Variant
Frame typer
-
For rectangular tops
Frame with two legs, for rectangular tops.
Frame types
-
For corner tops
Frame with two legs and one long console, for corner tops. -
For desk combinations
Frame for desk combinations.
Materials
Leg frame
-
Metal
-
Table top
-
Wood
-
-
MFC
-
-
HPL
-
-
Linoleum
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Power and cable management
Accessories for power, IT and cable management. -
Accessories for table screens
Cable management, monitor holders etc -
Table screen
Table screens for screening and improved acoustics. -
Standing mat
Ergonomic workstation mat, core in PU, outer layer in PU-rubber or felt.
| Product Overview | ||
|---|---|---|
| Cutouts for accessories in table tops - co-ordinates | Share file Download file | |
| EFG tables assortment - meeting tables and desks | Share file Download file | |
| Models | ||
|---|---|---|
| Table tops 3D Studio .3ds / AutoCad 3d .dwg | zip | Share file Download file |
| Izi Effect - AutoCad 2D .dwg | zip | Share file Download file |
| Izi Effect - 3D Studio .3ds | zip | Share file Download file |
| Izi Effect - Filmbox .fbx | zip | Share file Download file |
| Certificates and licenses | ||
|---|---|---|
| Izi Effect - Environmental declaration | Share file Download file | |
| Izi Effect - Möbelfakta certificate | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| Izi Effect assembly instruction | Share file Download file | |
| U-tray power- & cable management | Share file Download file | |
| Product sheet | ||
|---|---|---|
| Izi Effect - desk frame | Share file Download file | |
| U-tray power- & cable management | Share file Download file | |
