Tab S

Floor screen

Tab S is a flexible floor screen/partition that works both on its own as in combinations. With top connectors for T- and X-joints, and linking feet, multiple screens can be connected in straight rows or angled at 90° or 120° — ideal for creating larger zones or room-in-room solutions. The standard version is available in three heights, with custom height and width options available on request. Tab S is a flexible screen with enhanced sound-absorbing properties that improves both acoustics and focus — without taking up space. It can be used to create privacy, reduce visual distractions, and support personal organisation. With Tab S, you don’t just improve the sound environment — you create clearly defined zones in flexible workspaces. The screens can be customised in height and width on request. Tab S comes with full documentation of its acoustic N10 rating (sound reduction).

EFG Design Team

Möbelfakta certified

Find dealer

More images

Configure in pCon

Model

Floor screen

Details

Screens can be connected into larger screening solutions and room-in-room spaces using connection fittings in 90° and 120° angles. Top fittings are available for T- and X-connection.

Construction

The screen’s total thickness may vary slightly depending on the selected upholstery. The frame is built from solid pine with a 30 x 56/112 mm profile and filled with 30 mm sound-absorbing polyester. Upholstered with a total of 10 mm polyurethane foam and fabric. T-feet and fittings made of 5 mm powder-coated steel plate.

Guarantee

5 years

Tested

1023-1-3, ISO 354, SS 25269

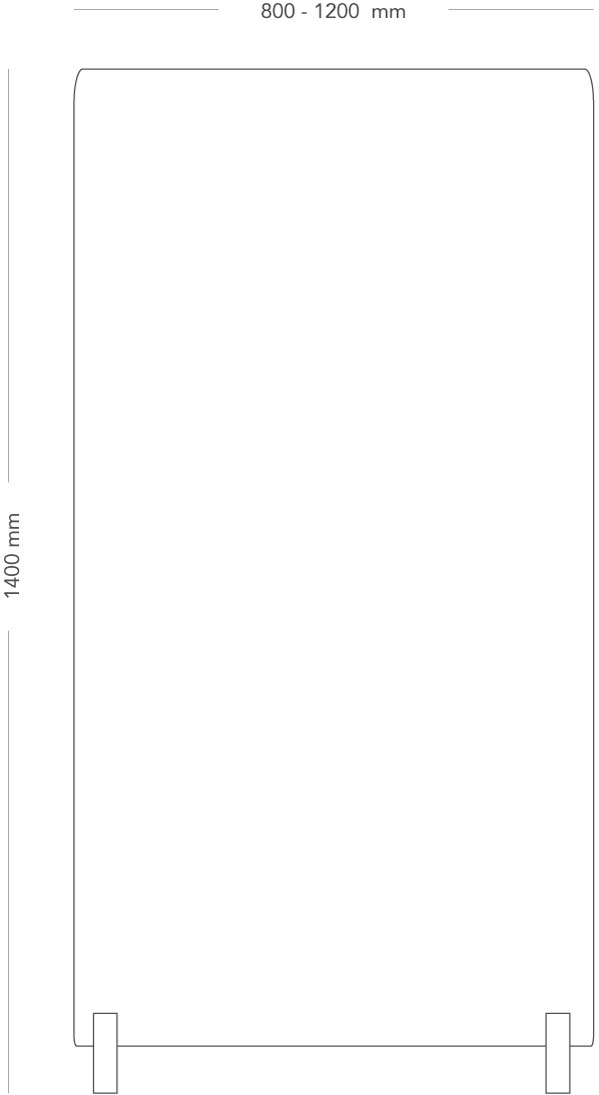

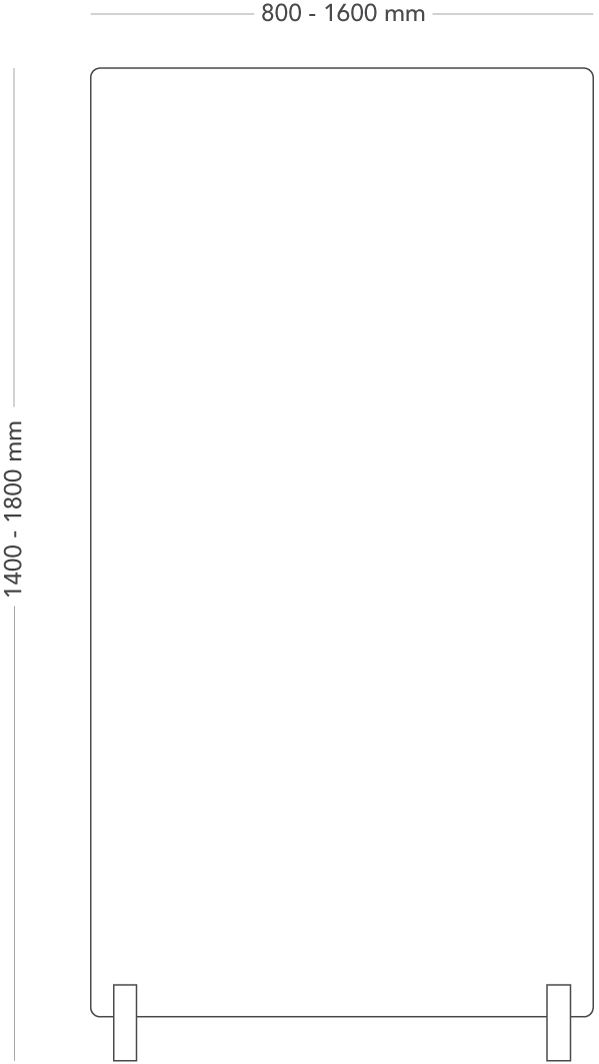

Floor screen

Height	1400 - 1800 mm
Width	800 - 1600 mm
Depth	45 mm

Materials

Screen

Metal

Name:
Code:
Colour code:
Price group:
RAL-colour:
NCS-colour:
Supplier colour code:
Composition:

Accessories

Accessories "Add"
Add is a unique series of accessories for screens and pods.
Connection fitting
Fittings for connecting two or more units.

Assembly instructions
TabS-Wall assembly	pdf	Share file Download file
TabS-Desk assembly	pdf	Share file Download file
TabS-Floor assembly	pdf	Share file Download file

Brochures and Catalogues
TabS broschure	pdf	Share file Download file

Certificates and licenses
Tab S Environmental declaration (EN)	pdf	Share file Download file
EFG Tab S Floor screen Möbelfakta Certificate	pdf	Share file Download file

Models
EFG-Tab S Floor	zip	Share file Download file
Tab S floor screen Ifc	zip	Share file Download file
Tab S floor screen Lcf	zip	Share file Download file
Tab S floor screen Revit	zip	Share file Download file
Tab S floor screen Sketchup	zip	Share file Download file
Tab S floor screen Materials	zip	Share file Download file
Tab S floor screen 2dwg	zip	Share file Download file
Tab S floor screen 3d Studio	zip	Share file Download file
Tab S floor screen 3dwg	zip	Share file Download file
Tab S floor screen gsm	zip	Share file Download file
