Pulse
StorageA functional and adaptable storage family with clean lines. Modular construction. Open shelving, different combinations of storage with drawers and doors. Pulse is a functional storage family with clean lines, sharp edges and a large variety of materials and finishes. It is flexible and functional, modular, adaptable and it can be configured either by our own dedicated workstation or in clustered units in the open landscape.
Model
Storage
Details
Storage units can be ordered with metal legs in two heights, plinths or castors. Lock with key is standard, also available with code lock or RFID lock. Different options are available for handles and knobs.
Construction
The frame consists of a 22 mm wood fiberboard top, 16 mm wood fiberboard sides, fronts, and bottom, and an 8 mm wood fiberboard back panel. The surface is coated in veneer or laminate, with a thickness of 0.2–2 mm depending on the chosen material. Knob or loop handles are made of steel, while locks are either steel or a combination of plastic and steel, depending on the variant. The base is available in plastic or laminate with a 16 mm wood fiberboard core. The structure can be supported by a 12x12 mm steel tube leg frame or a steel wheel frame with 60 mm diameter castors. The drawer frame is made of steel sheet.
Guarantee
5 years
Tested
EN 16121 - EN 16122

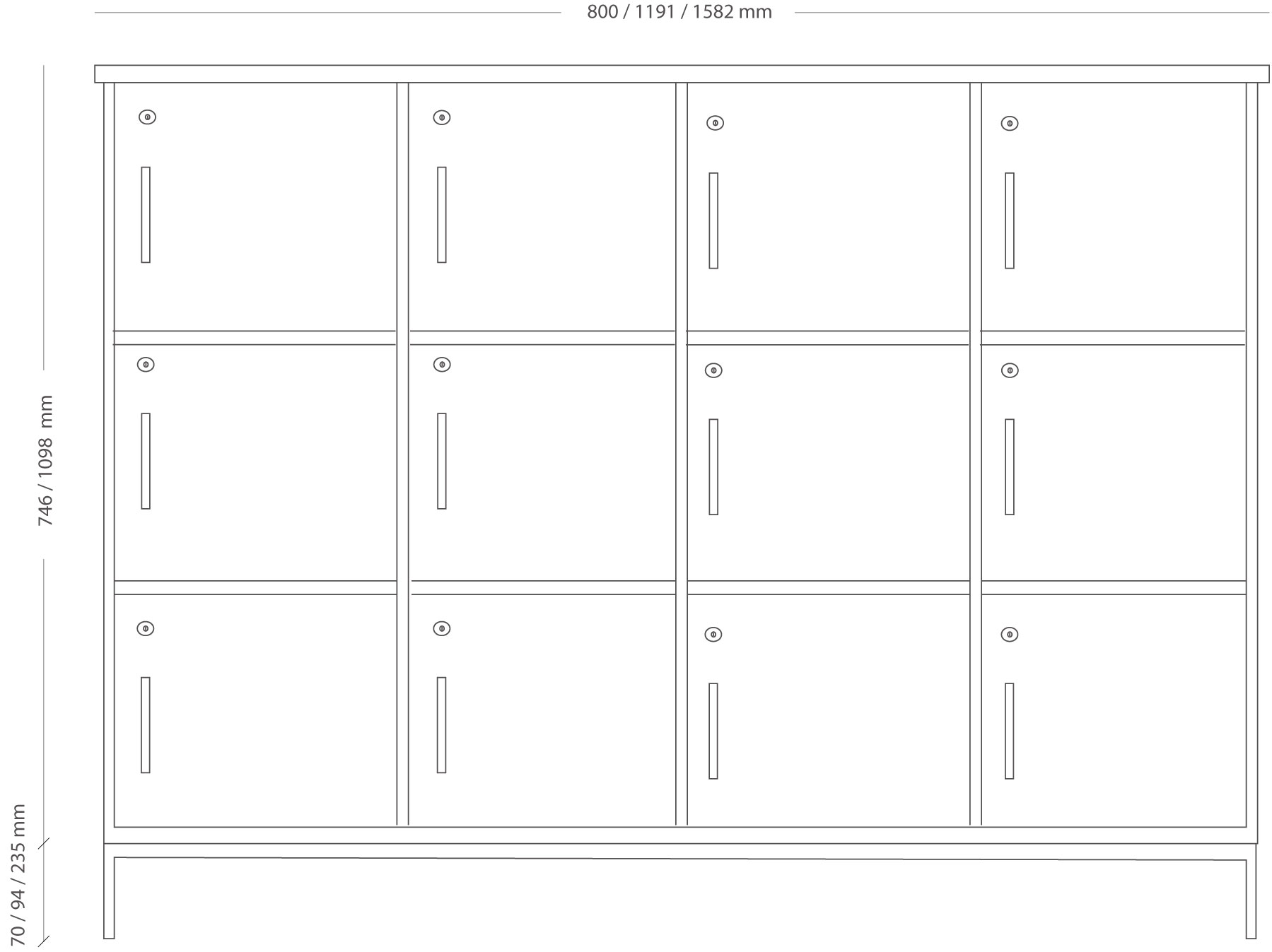

Rectangular doors
| Height | 746/1098 mm |
| Width | 800/1191/1582 mm |
| Depth | 400 mm |
| Weight | 30 - 90 kg |

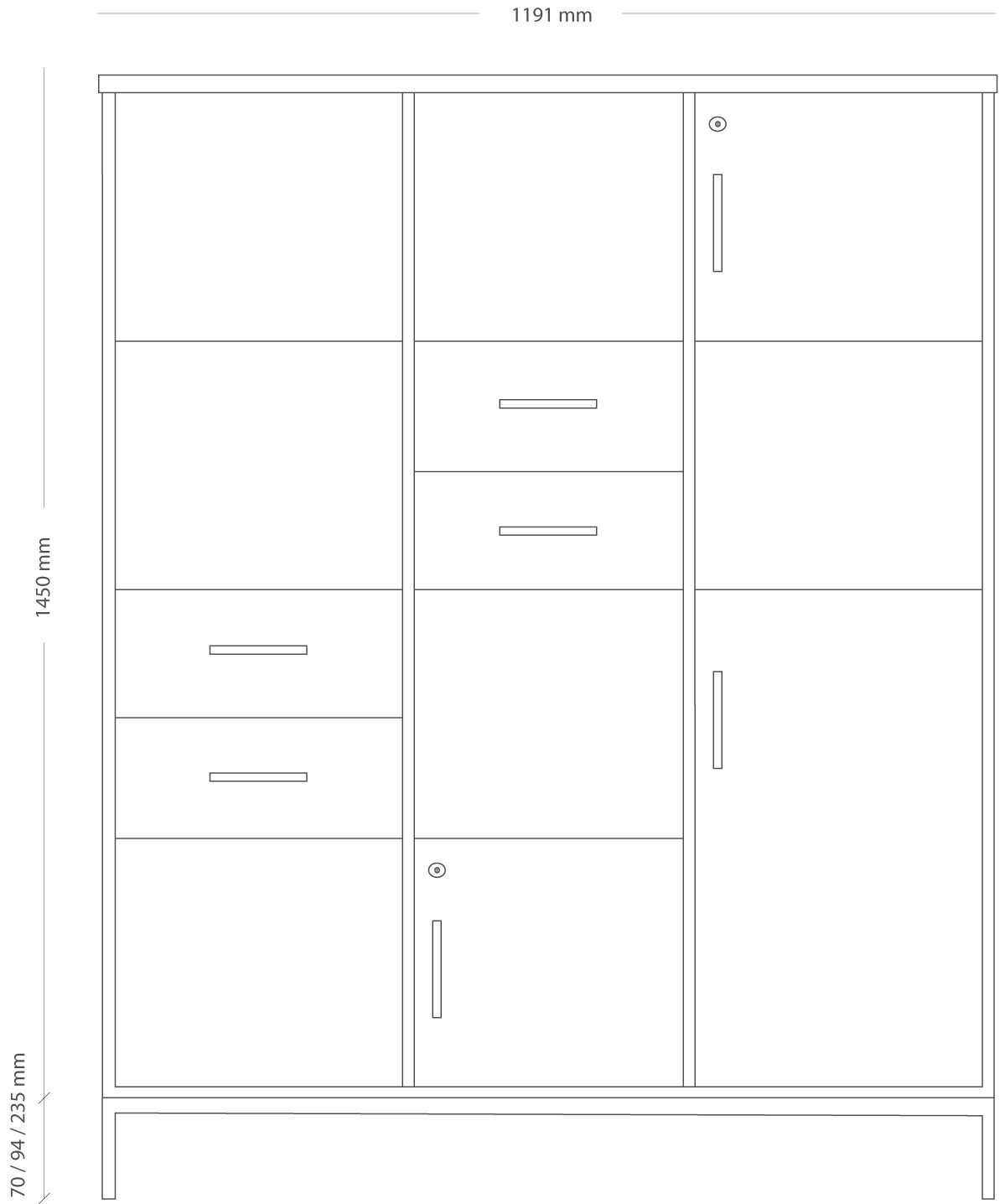

Rectangular doors, drawers
| Height | 746/1098/1450 mm |
| Width | 800/1191 mm |
| Depth | 400 mm |

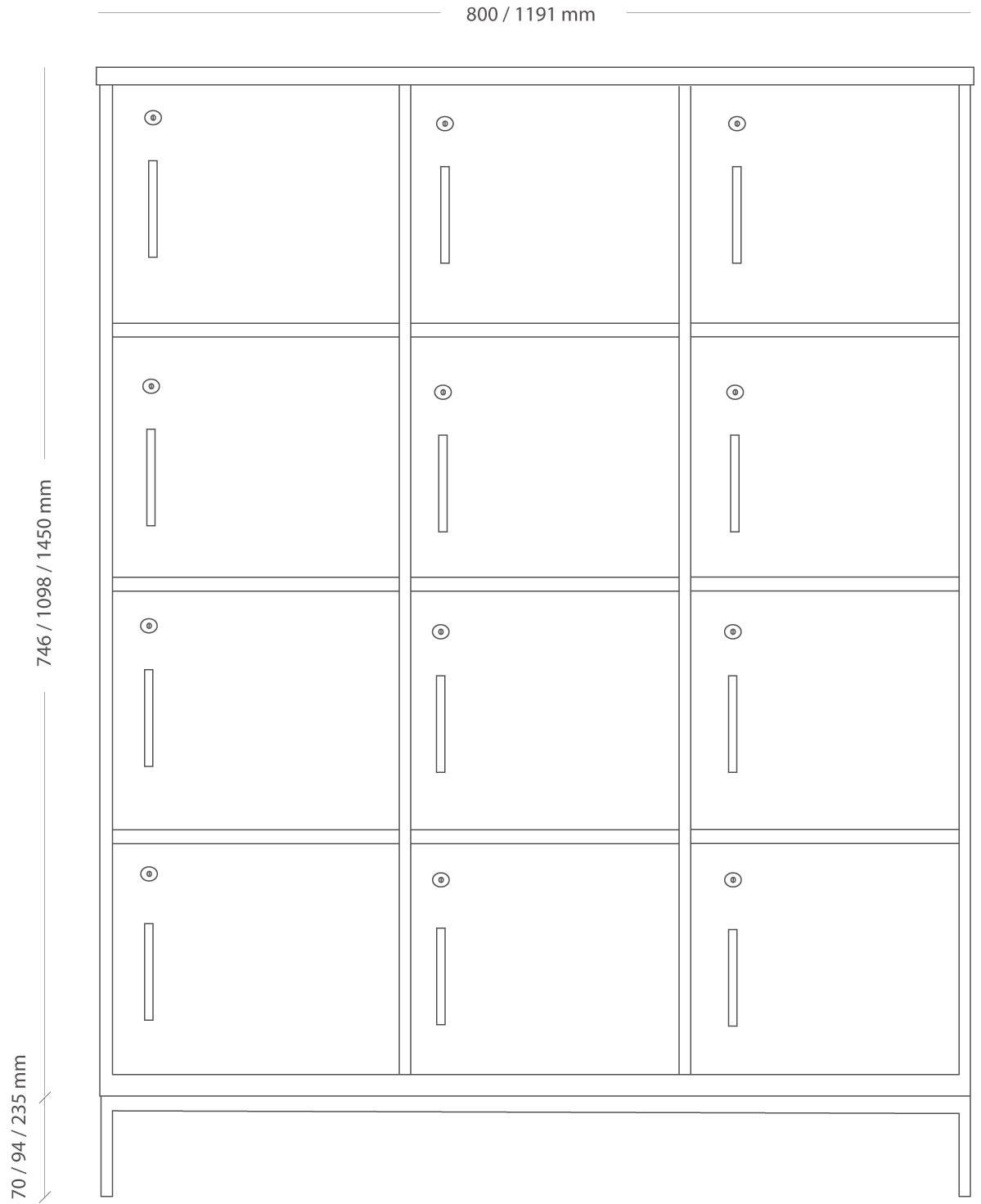

Rectangular doors
| Height | 746/1098/1450 mm |
| Width | 800/1191 mm |
| Depth | 400 mm |
Variant
Materials
Frame
-
Wood
-
Front
-
Wood
-
Legs
-
MFC
-
Handles and knobs
-
MFC
-
-
Metal
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Bracket handle
Bracket handle 150 mm. -
Other colours on leg frame
Other colours available on request. -
Key lock
Lock with key. -
Code lock
Lock with code. -
RFID-lock
Lock with RFID-function. -
Knob
Knob for drawer or door. -
Filing accessories
Filing, form holders etc.
