Mingle

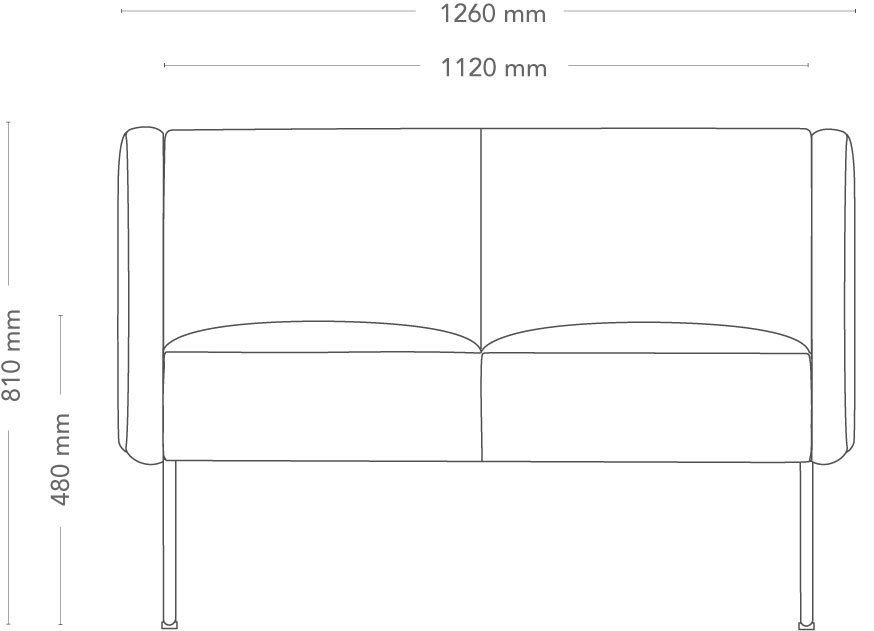

SofaMingle is a modular sofa system designed to allow for flexible and comfortable seating solutions on a small surface. With straight or curved modules for seats and tables, as well as fixed combinations, Mingle offers many possibilities for modern and scalable lounge- and seating areas or meeting places.Mingle sofa is available as two- or three- seater and is easy to vary with two back heights, and with or without armrests / high sides. With the high back, the sofa also serves as secluded seating for the room-in-room and meeting area. A small, flexible table which is fastened under the seat is available as option.
Model
Sofa
Details
Möbelfakta exception: chrome sledge and wooden legs not included in the Möbelfakta certificate. Upholstery in two different colors of fabric or leather.
Construction
Wooden seating frame made of board and solid wood. Cold-foam padding, fully upholstered. Sledge frame, made of Ø12 mm steel tube. Ø30 mm straight metal legs, made of powder-coated steel tube. Round, straight solid-wood legs Ø45 mm.
Guarantee
5 years
Tested
EN 16139, EN 1728

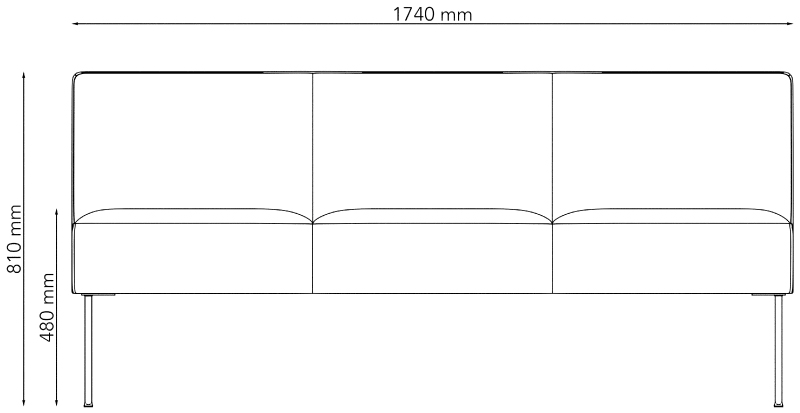

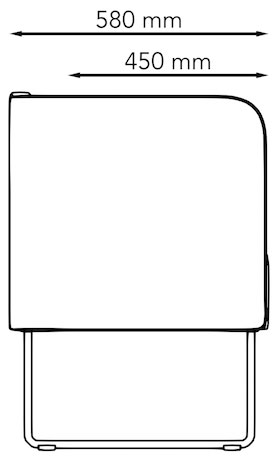

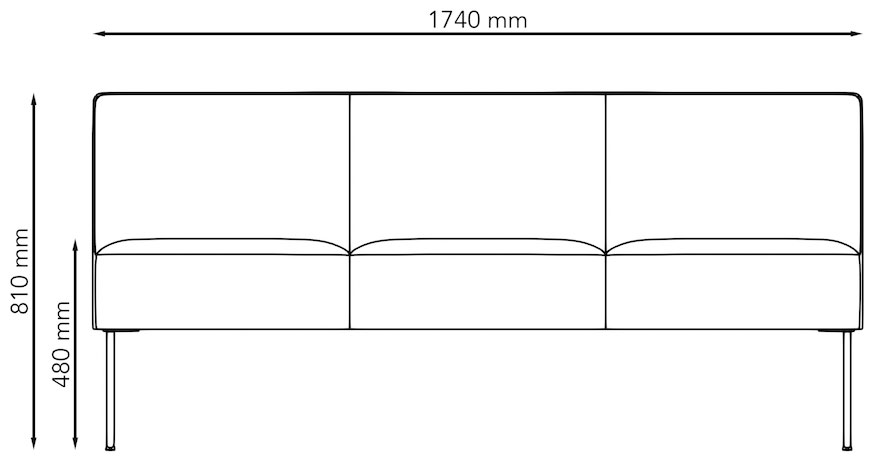

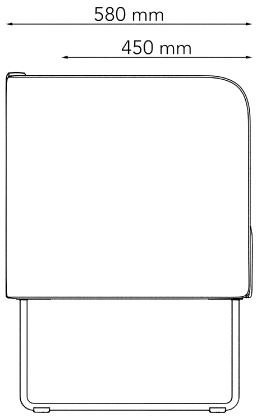

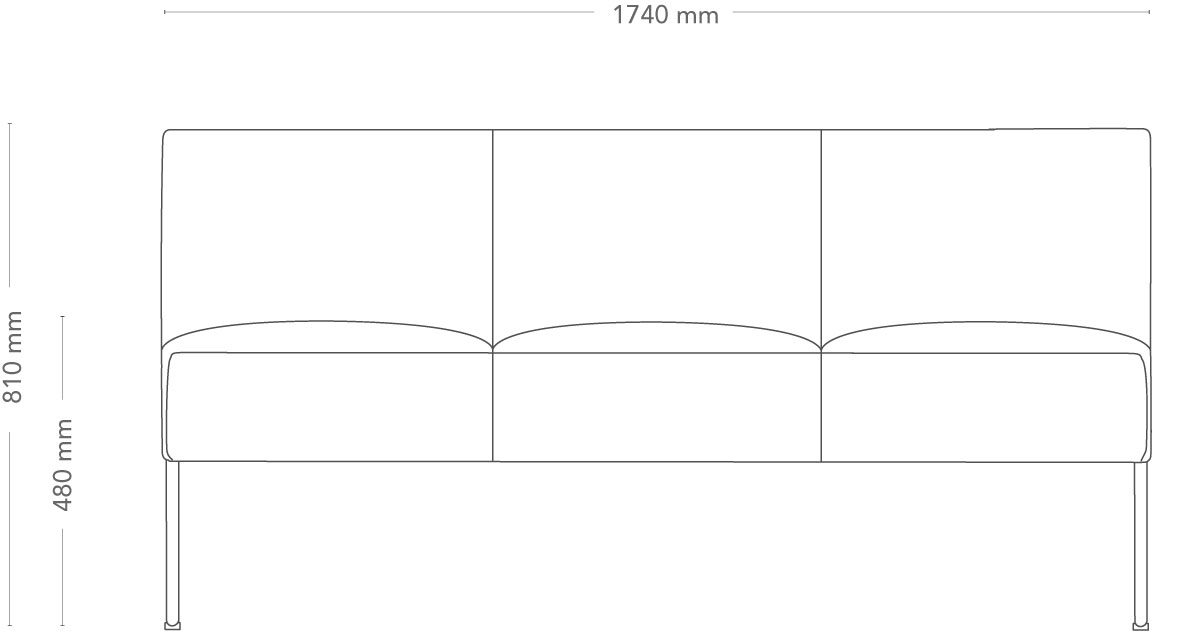

Sofa 3-seater
| Height | 810 mm |
| Width | 1740 mm |
| Depth | 580 mm |
| Seat height | 480 mm |
| Seat width | 1740 mm |
| Sit depth | 450 mm |
| Weight | 32.0 kg |

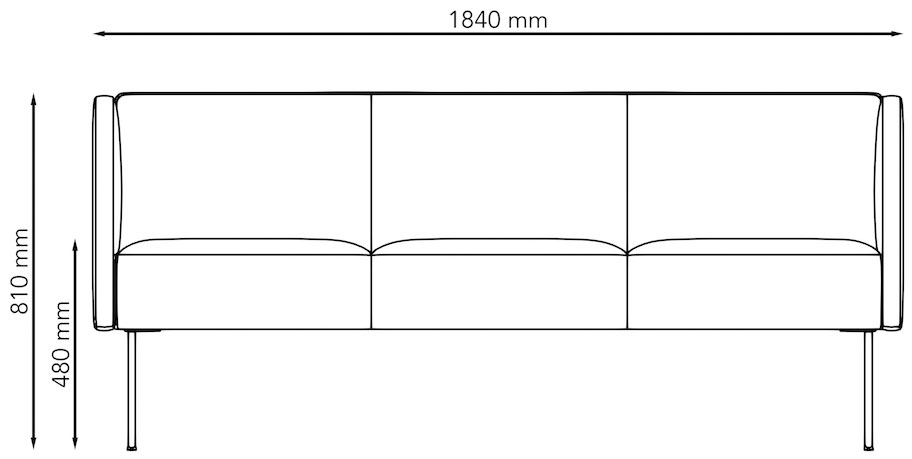

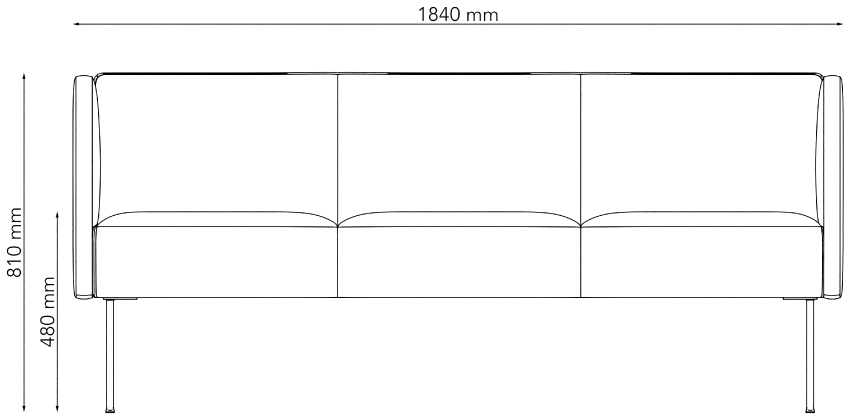

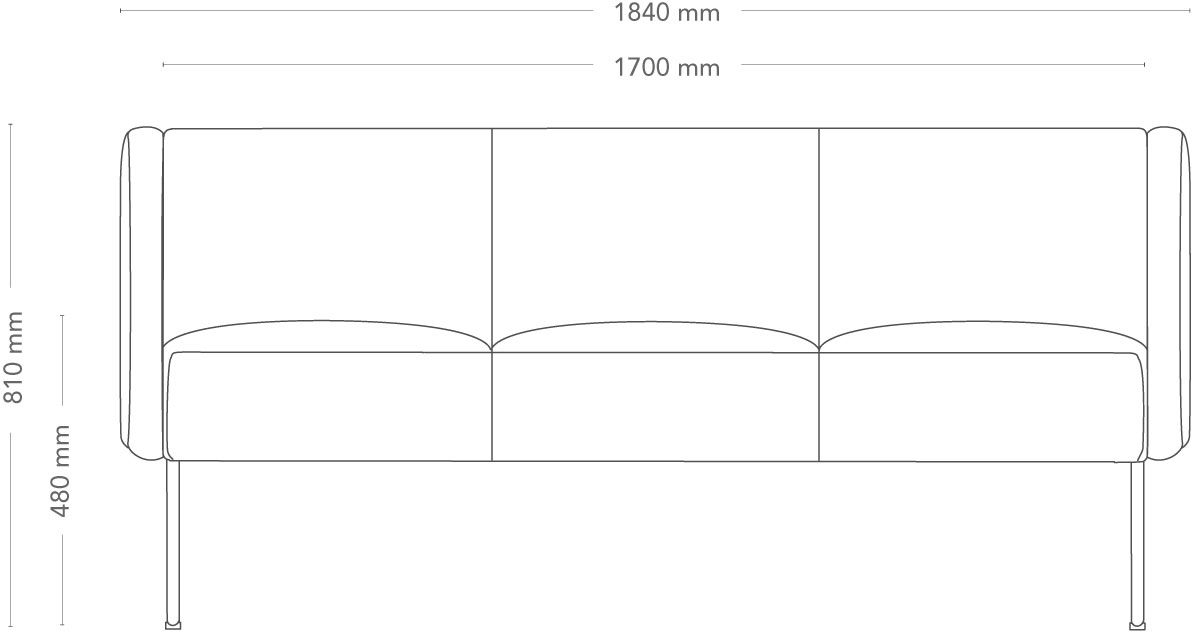

Sofa 3-seater, low back, armrests
| Height | 810 mm |
| Width | 1840 mm |
| Depth | 580 mm |
| Seat height | 480 mm |
| Seat width | 1700 mm |
| Sit depth | 450 mm |
| Weight | 45.0 kg |

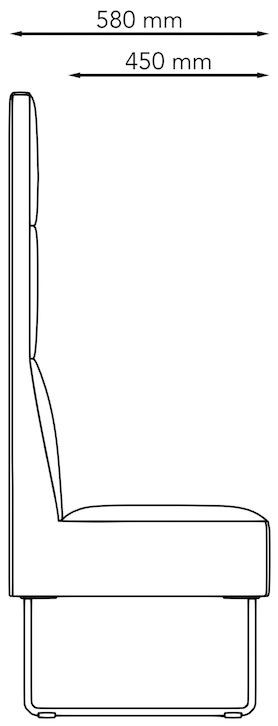

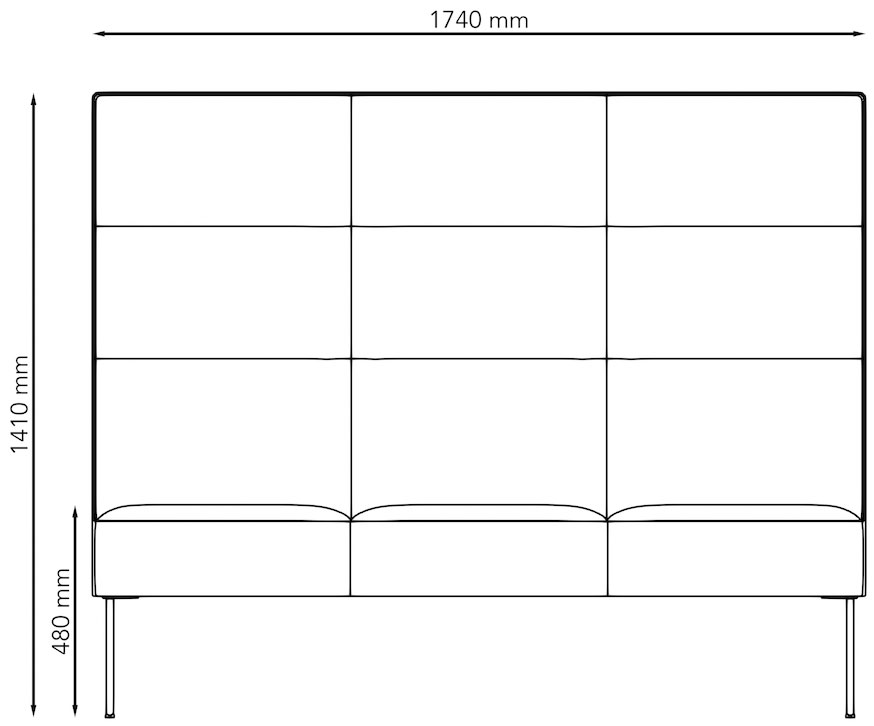

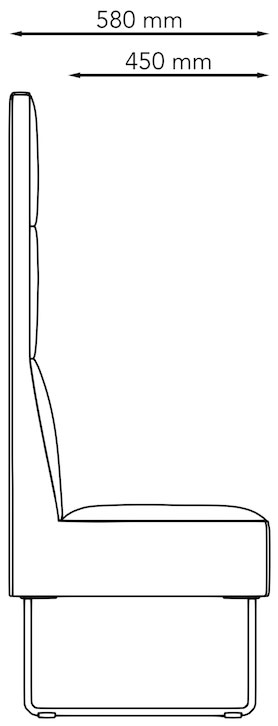

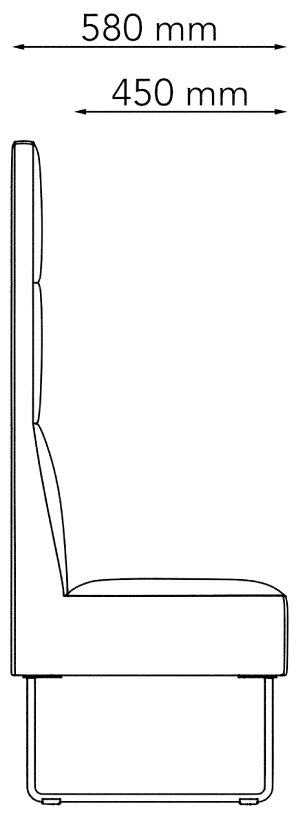

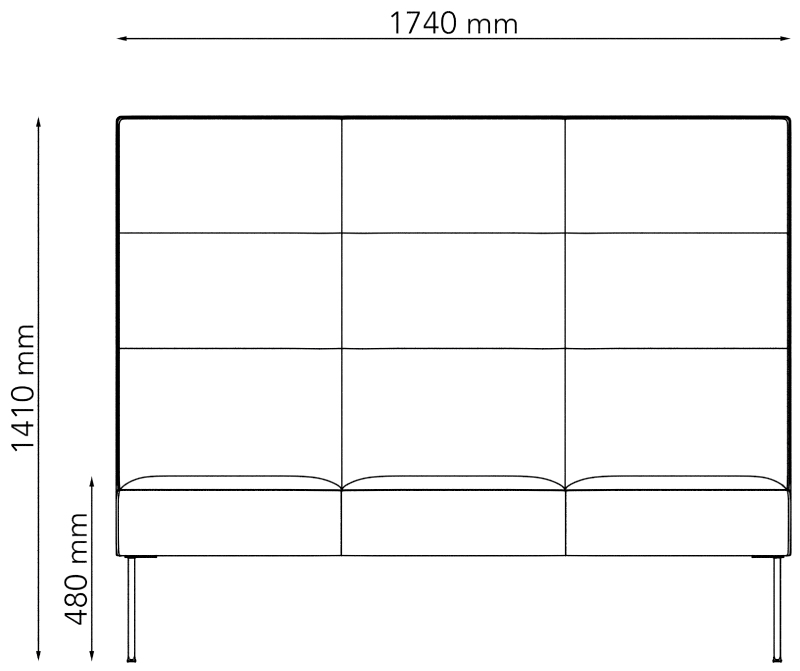

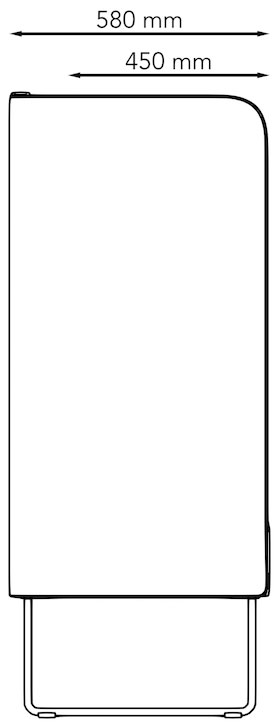

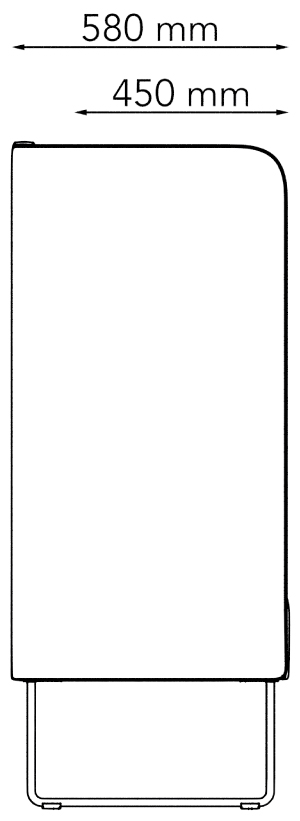

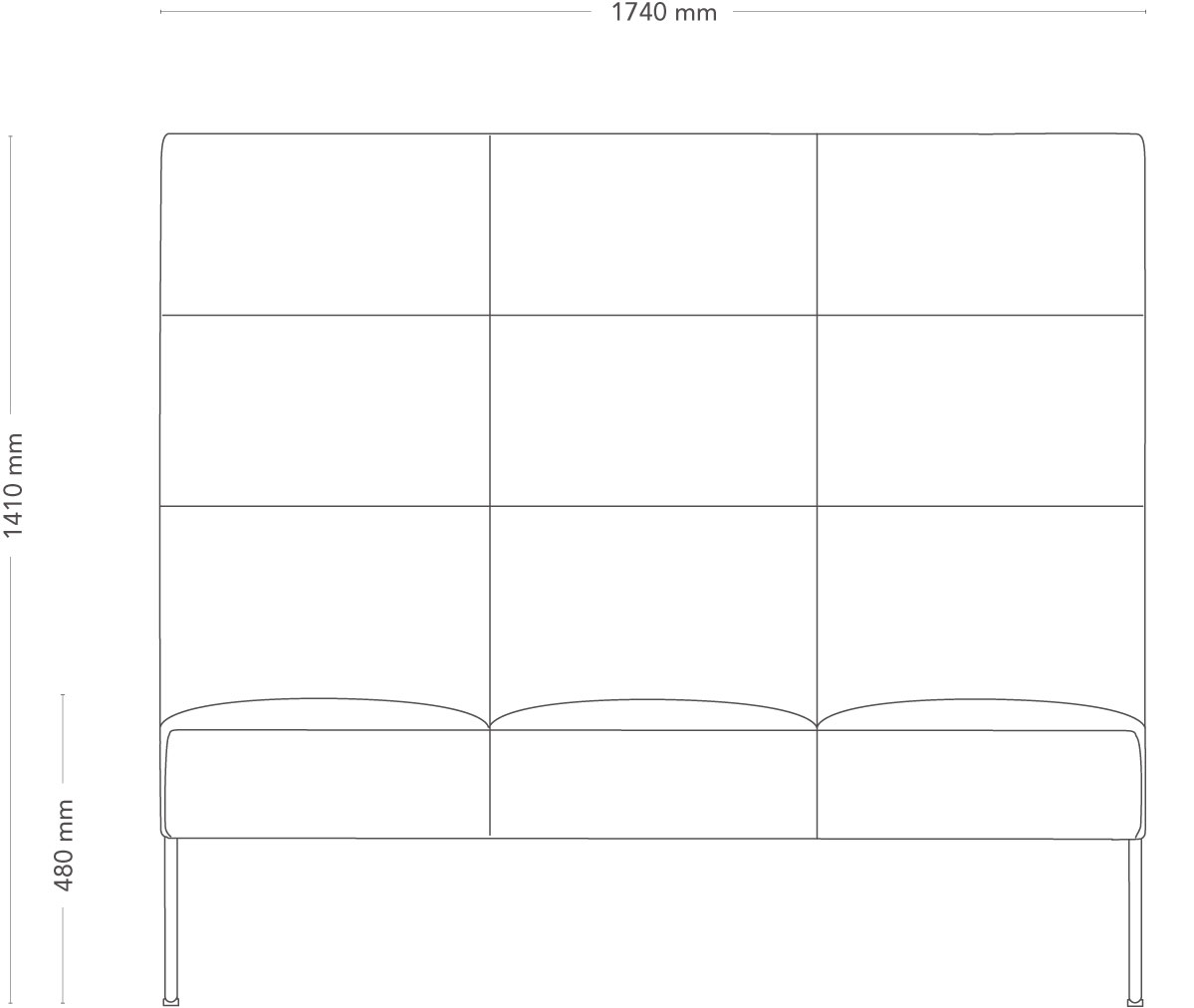

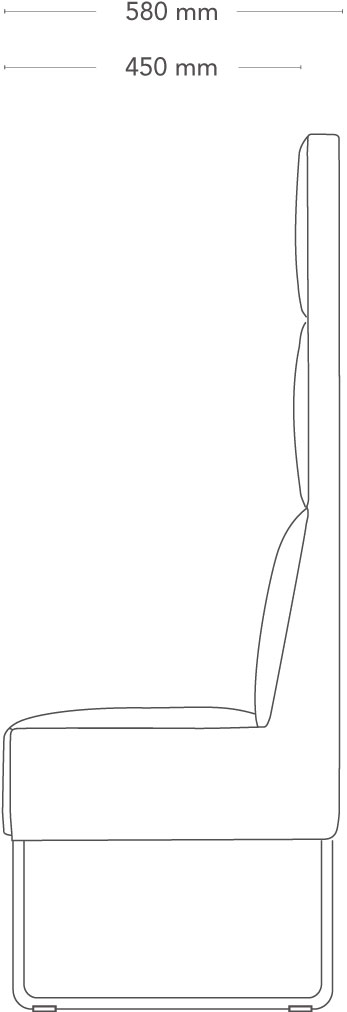

Sofa 3-seater, high back
| Height | 1410 mm |
| Width | 1740 mm |
| Depth | 580 mm |
| Seat height | 480 mm |
| Seat width | 1740 mm |
| Sit depth | 450 mm |
| Weight | 42.5 kg |

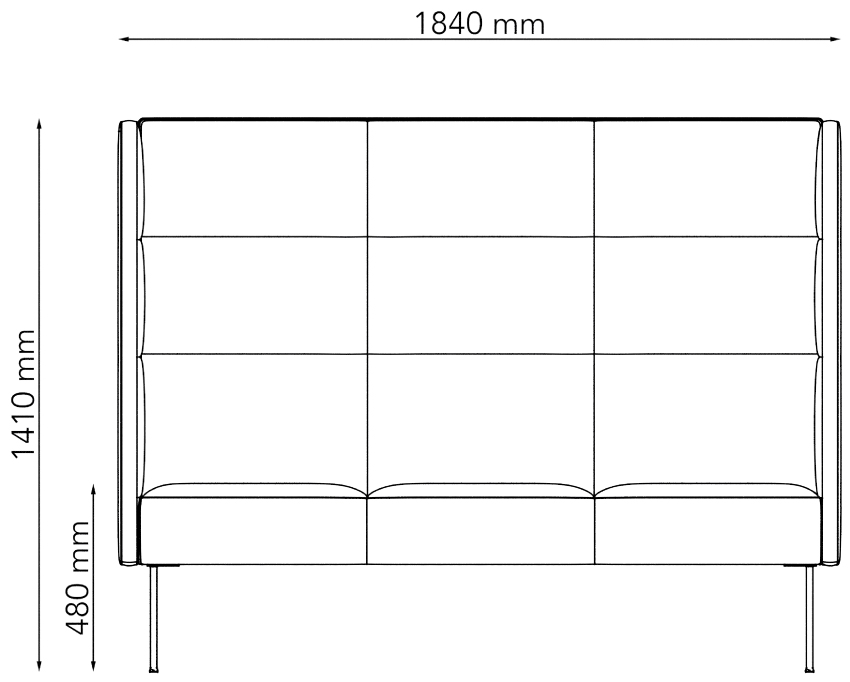

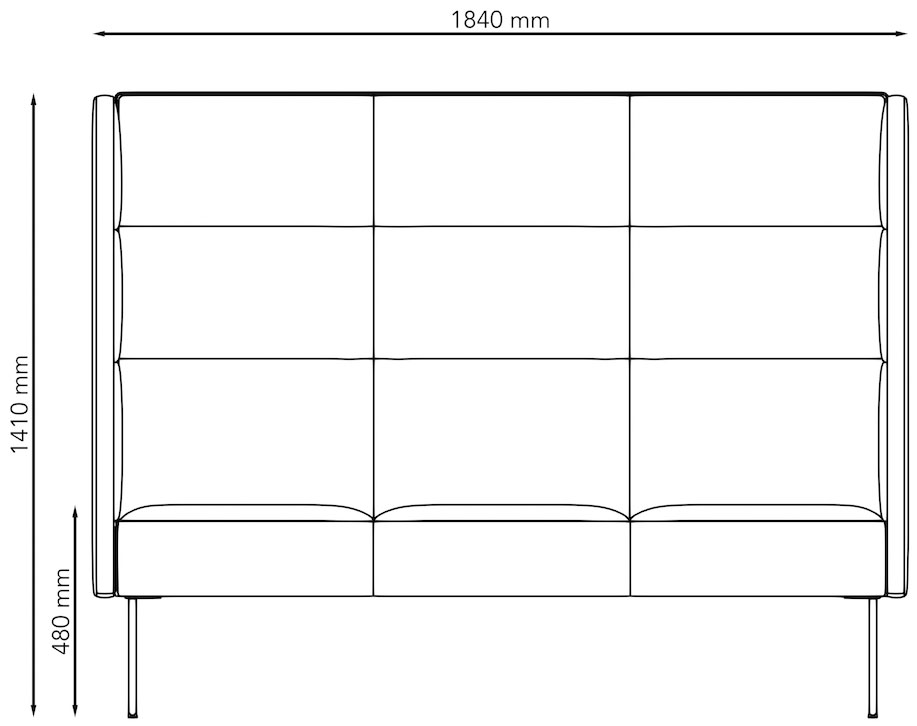

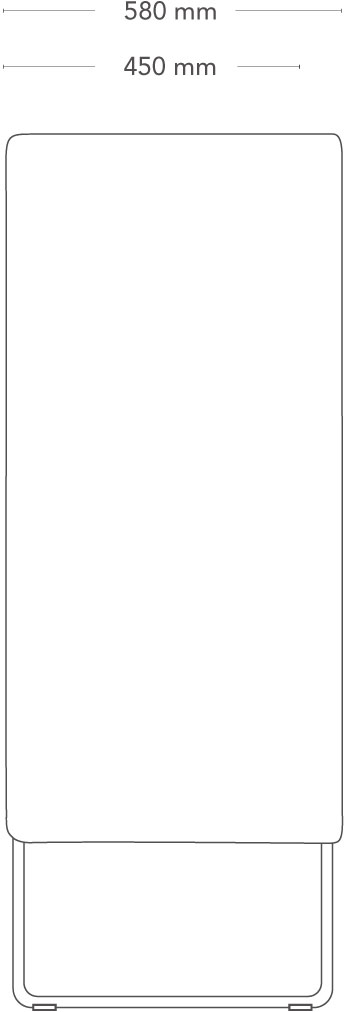

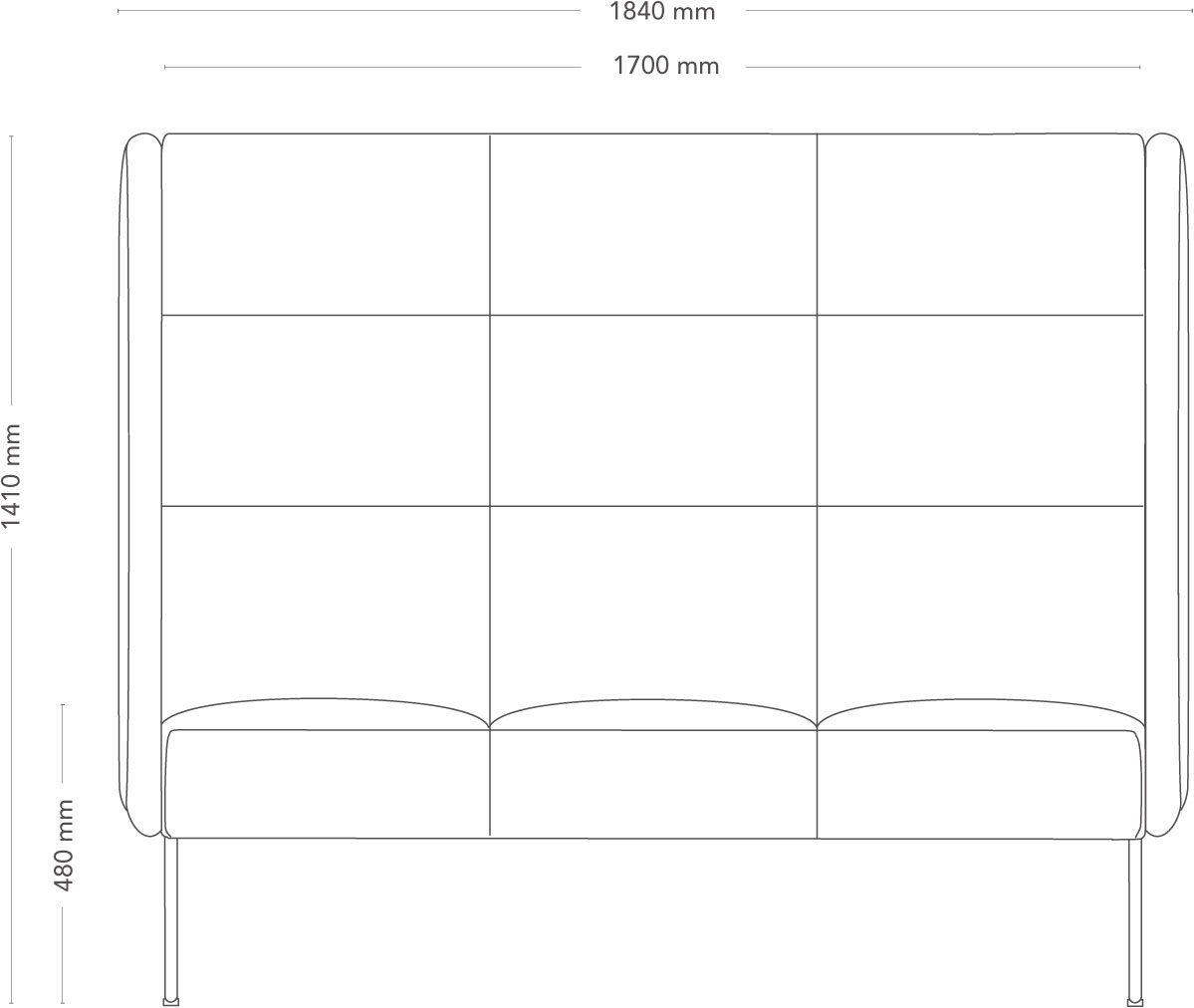

Sofa 3-seater, high back, armrests
| Height | 1410 mm |
| Width | 1840 mm |
| Depth | 580 mm |
| Seat height | 480 mm |
| Seat width | 1700 mm |
| Sit depth | 450 mm |
| Weight | 46.0 kg |
Variant
Back height
-

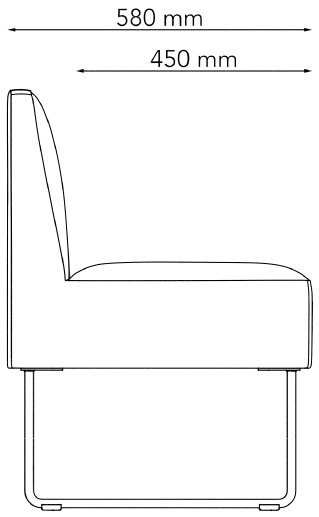

Low back
Low back. -

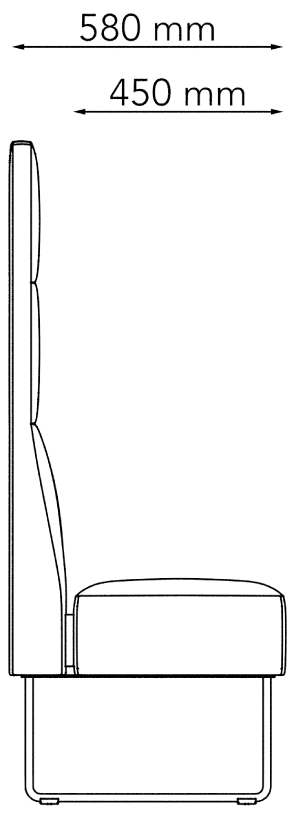

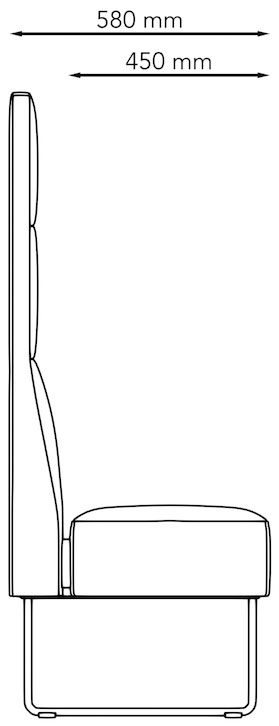

High back
High back.
Seat
-

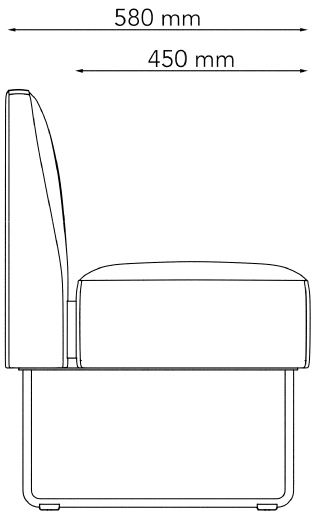

Divided seat and back
10 mm gap between seat and back.
Armrest
-
Armrests
Armrests on one or two sides.
Legs
-
Sledge
Metal sledge base. -
Metal legs
Straight, round metal legs. -
Wooden legs
Straight, round wooden legs.
Materials
Seat, back and armrests
-
Popular fabrics and leathers
Preferred fabrics -
Legs
-
Wood
-
Sledge
-
Lacquer
-
-
Metal
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Connection fitting
Fittings for connecting two or more units. -
Power and cable management
Accessories for power, IT and cable management.
