Izi Pro
Desk frame sit/standSit- stand table frame for flexible workplace solutions. Adjustable length, different leg options available. EFG Izi Pro is a large flexible family of tables all with a clean design. The frame is both height adjustable and the telescopic beams facilitate various top sizes, a practical and economical solution if changes call for a larger or smaller table. The range can be configured with numerous different table tops, sizes and finishes to suit your specific needs. Sliding table tops are ideal for hiding cables and by adding Smart accessories functionality meets design effortlessly.
Model
Desk sit/stand
Construction
Powder-coated motorized metal frame with rectangular or round legs, and T-foot. The thick part of the legs can be turned upwards or downwards. Steel rims that can be steplessly adjusted in the range 1050-1915 mm, suitable for table tops 1200-2200 mm. Stroke length 650 mm, which gives height adjustment 640-1290 mm. Anti-collision protection. Maximum load 100 kg including table top, evenly distributed weight. Table top has a straight edge, a 22 mm core in wood-fiber material, and surface coating varying from 0.2-2 mm depending on the choice of material.
Guarantee
5 years
Tested
EN 527-1-2, EN 1730, ISO 21016, CE- European directive 2006/42/EG
Motor-driven metal frame
| Weight | 30 - 50 kg |
Variant
Frame types
-

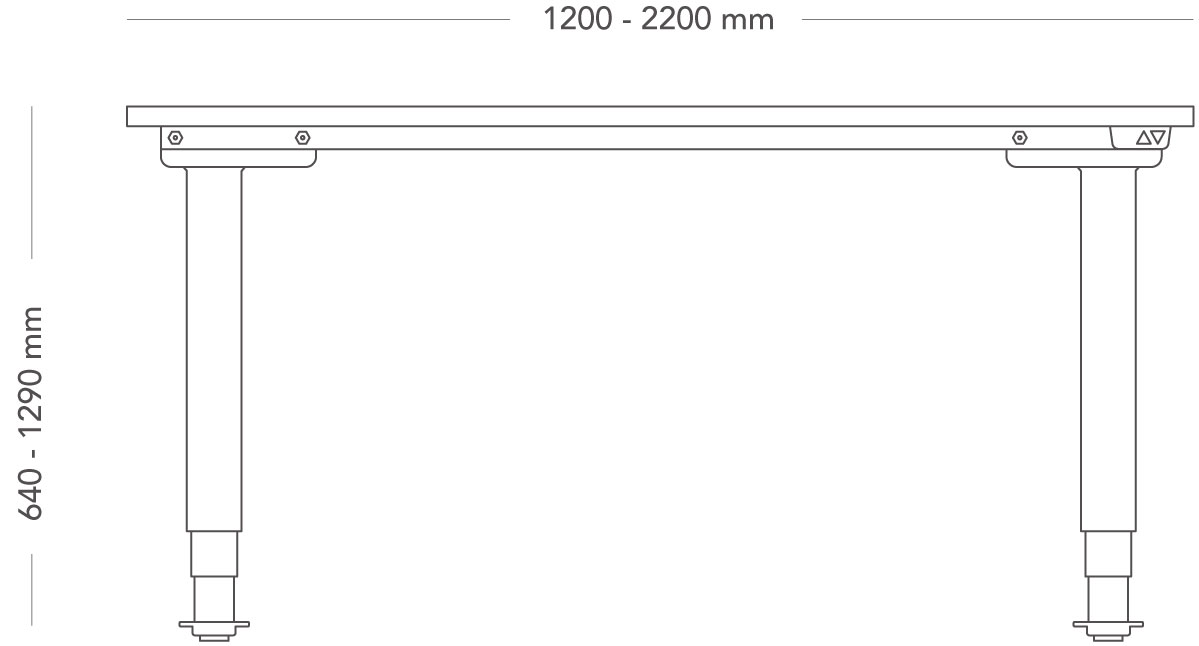

For rectangular tops
Two legs, 2x700 mm feet, for rectangular tops. -

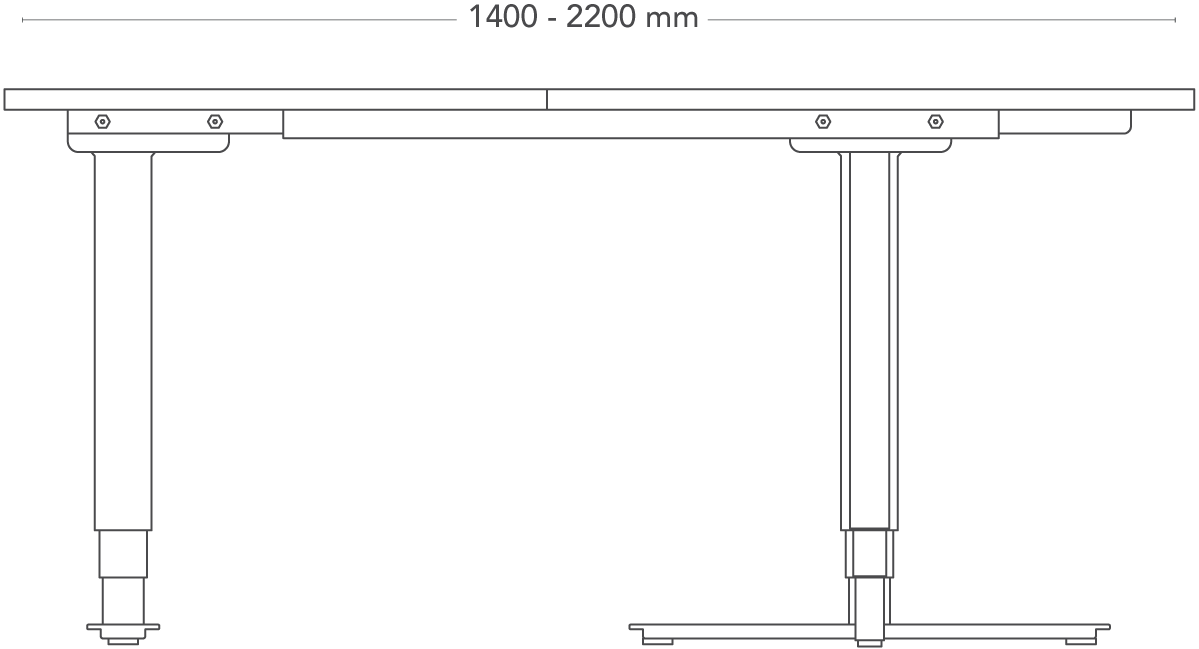

For corner tops
Two legs, 2x700 mm feet, and one long rim, for corner tops. -

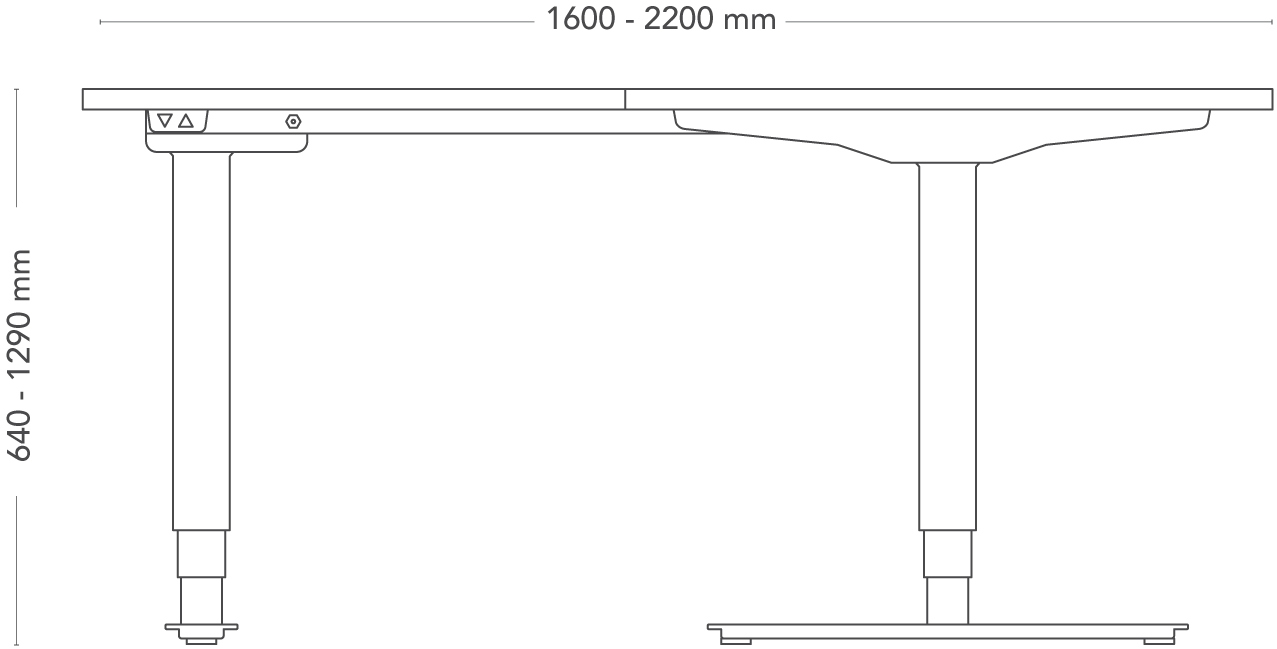

For desk combinations
With three legs, 2x700 mm feet, 1x500 mm foot, for desk combinations.
Leg variant
-
Thick part of the leg upward
Thick part of the leg upward, toward the table top. -
Thick part of the leg downward
Thick part of the leg turned downward, toward the foot.
Accessories
-
Power and cable management
Accessories for power, IT and cable management. -
Accessories for table screens
Cable management, monitor holders etc -
Table screen
Table screens for screening and improved acoustics.
| Brochures and Catalogues | ||
|---|---|---|
| EFG Table Selection broschure | Share file Download file | |
| Izi Pro broschure | Share file Download file | |
| User manual | ||
|---|---|---|
| Troubleshooting | Share file Download file | |
| Izi Pro manual | Share file Download file | |
| How to reset - manual | Share file Download file | |
| Assembly instructions | ||
|---|---|---|
| Izi Pro assembly | Share file Download file | |
| Certificates and licenses | ||
|---|---|---|
| Izi Pro Environmental declaration (EN) | Share file Download file | |
| EFG Izi Pro Möbelfakta Certificate | Share file Download file | |
| Izi Pro Svanen certificate (EN) | Share file Download file | |
| Product Overview | ||
|---|---|---|
| EFG worktables coordinates | Share file Download file | |
| Models | ||
|---|---|---|
| Table Tops 3ds, dwg | zip | Share file Download file |
| Izi Pro 2dwg | zip | Share file Download file |
| Izi Pro 3dwg | zip | Share file Download file |
| EFG Table tops 2dwg | zip | Share file Download file |
| EFG table tops 3dwg | zip | Share file Download file |
