Archie
Chair with 5-star swivel baseArchie is a chair series that in several designs with a design that is both innovative and practical. With all the possibilities for variation, Archie is easy to adapt to all offices and public environments.Frame with metal swivel base.
Model
Chair with 5-star swivel base
Construction
PC/ABS-plastic seat shell. Upholstered versions with padding of highly elastic foam (HR foam). 5-star swivel base made of cast recycled aluminum or plastic, height-adjustable steel pillar, and castors. Tiltable mechanism made of cast recycled aluminum/steel or fixed-height mechanism made of sheet steel.
Guarantee
5 years
Tested
Tested according to. EN 16139:2013 + EN 16139:2013/AC:2013 level 1, EN 1728:2012
Without armrests
| Height | 820-920 mm |
| Width | 620 mm |
| Depth | 620 mm |
| Seat height | 370-470 mm |
| Sit depth | 440 mm |
| Base diameter | 670 mm |
| Weight | 11.0 kg |

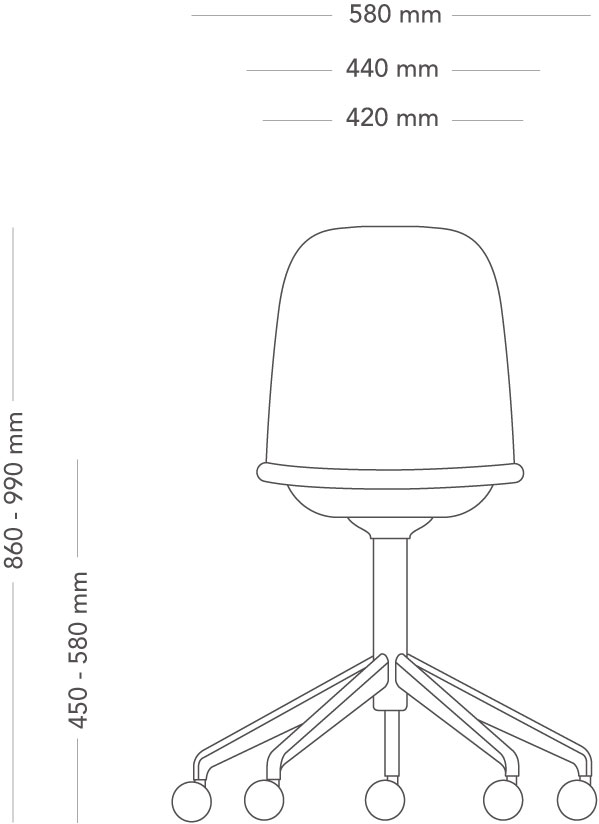

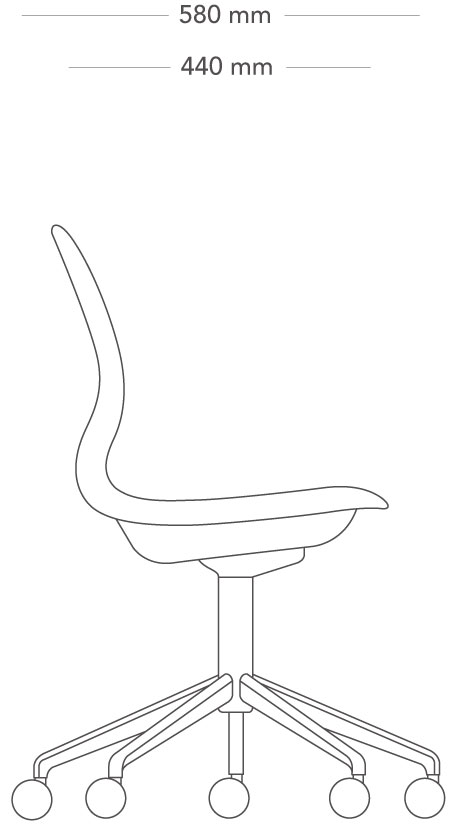

Utan armstöd
| Height | 860-990 mm |
| Width | 580 mm |
| Depth | 580 mm |
| Seat height (with load) | 410-540 mm |
| Seat height | 450-580 mm |
| Sit depth | 440 mm |
| Base diameter | 640 mm |
| Weight | 11.0 kg |

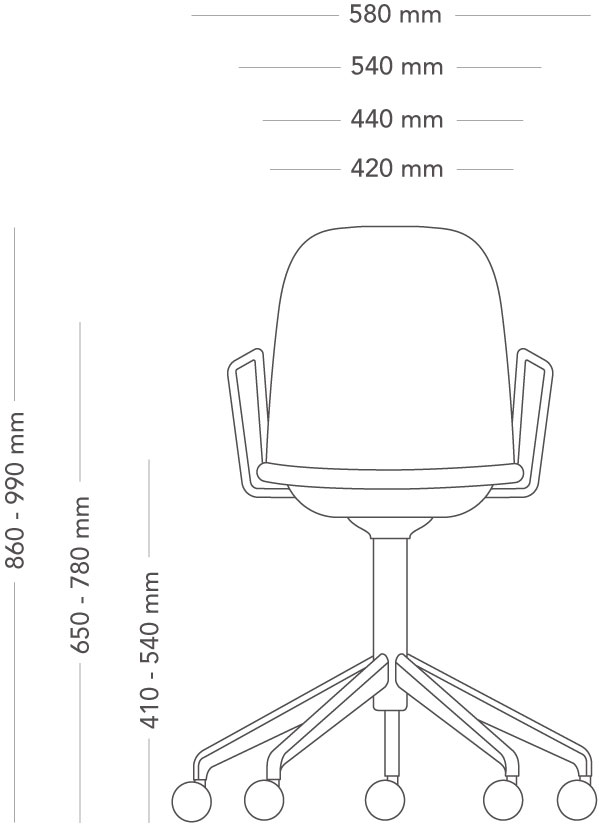

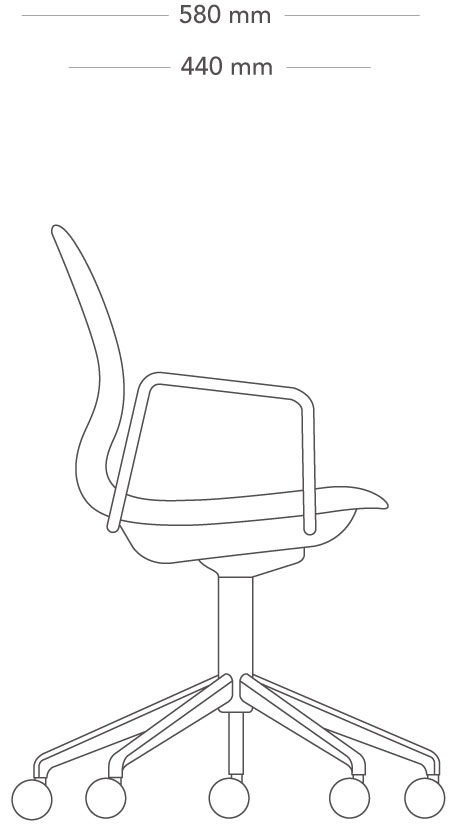

Med armstöd
| Height | 860-990 mm |
| Width | 580 mm |
| Depth | 580 mm |
| Seat height | 410-540 mm |
| Sit depth | 440 mm |
| Weight | 11.0 kg |
Variant
Seat
-
Plain
Seat shell without upholstery. -
Upholstered seat
Upholstered seat pad. -
Fully upholstered
Fully upholstered seat shell.
Armrests
-
No armrests.
No armrests. -
Bracket armrests.
Bracket armrests.
Materials
Seat
-
Popular fabrics and leathers
-
-
Metal
-
-
PC/ABS Plastic
-
Swivel base and armrests
-
Lacquer
-
-
Metal
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
